DIODESDatasheet (PDF)

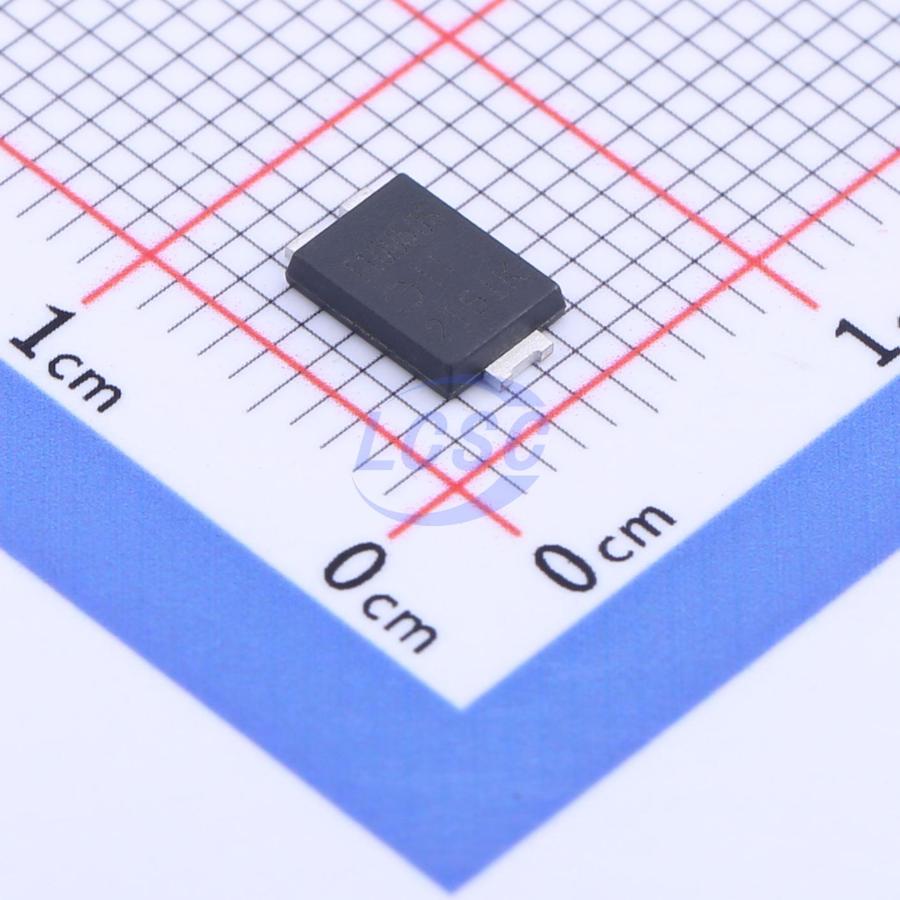

SBRT10U50SP5-13
1 Independent 50V 450mV@10A 10A PowerDI-5 Single Diodes RoHS
PowerDI-5ROHS3 CompliantActive
Voltage: 50V Current: 10A
- Manufacturer
- DIODES
- Manufacturer part #
- SBRT10U50SP5-13
- Store part #
- C2978909
- Package / case
- PowerDI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C2978909
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.38 | ₹100.38 |
| 10+ | ₹84.26 | ₹842.60 |
| 30+ | ₹76.10 | ₹2,283.00 |
| 100+ | ₹68.15 | ₹6,815.00 |
| 500+ | ₹63.20 | ₹31,600.00 |
| 1,000+ | ₹60.83 | ₹60,830.00 |
1 × ₹100.38
₹100.38
excl. GST
₹118.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBRT10U50SP5-13
₹100.38 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 450mV@10A
- Reverse Leakage Current (Ir)
- 75mA@50V
- Non-Repetitive Peak Forward Surge Current
- 320A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
Packaged in the compact thermally efficient POWERDI5 package, the TrenchSBR SBRT10U50SP5 provides ultra-low forward voltage drop (V_F) and provides excellent low reverse leakage stability at high temperatures. It is ideal for use as a rectification, freewheeling or polarity protection diode.
Applications
- 10W AC/DC Adapters/Chargers
- DC/DC Converters
Key features
- Ultra low forward voltage drop (V_F) helps – minimizes power losses
- Excellent reverse leakage (I_R) stability at higher temperatures
- Thermally efficient package for cooler running applications
- Less than 1.1mm package profile ideal for thin applications
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
