DIODESDatasheet (PDF)

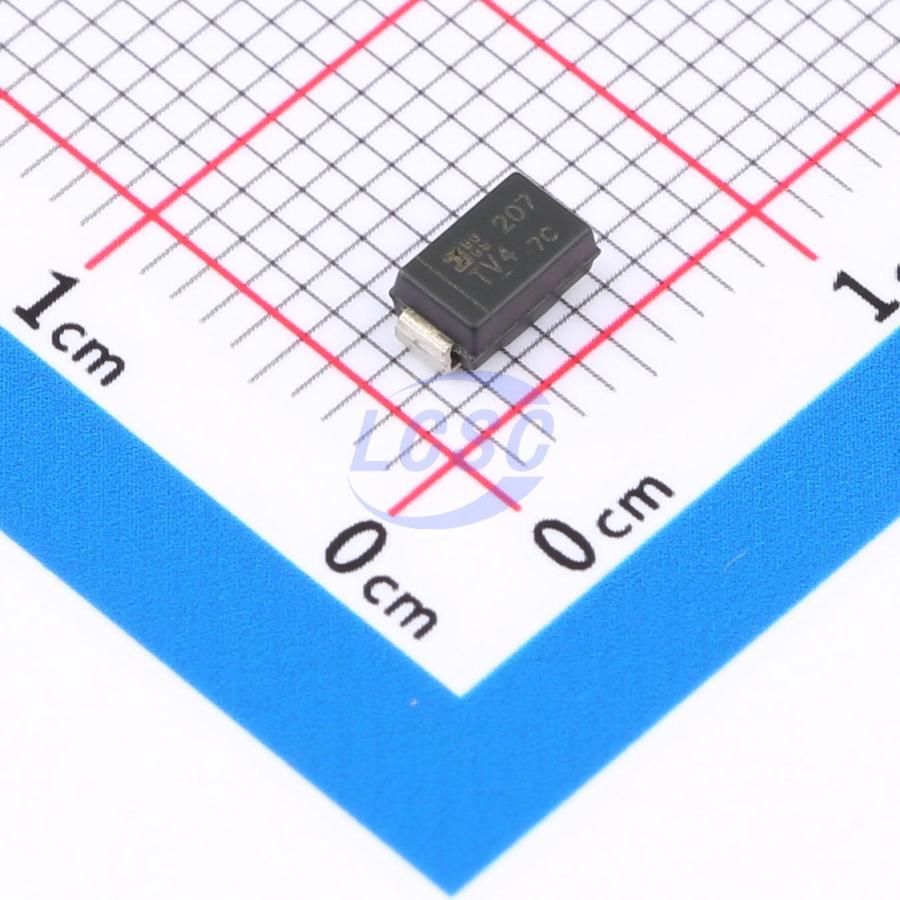

SBRT3U45SA-13
1 Independent 45V 480mV@3A 3A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
Voltage： 45V Current： 3A
- Manufacturer
- DIODES
- Manufacturer part #
- SBRT3U45SA-13
- Store part #
- C3025203
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C3025203
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.76 | ₹143.80 |
| 50+ | ₹28.14 | ₹1,407.00 |
| 150+ | ₹27.72 | ₹4,158.00 |
| 500+ | ₹27.31 | ₹13,655.00 |
5 × ₹28.76
₹143.80
excl. GST
₹169.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBRT3U45SA-13
₹143.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 480mV@3A
- Reverse Leakage Current (Ir)
- 150uA@45V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
The SBRT3U45SA is a 3A 45V single rectifier packaged in the low profile SMA package. Providing very low VF and excellent reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications such as: Boost Diode Blocking Diode Recirculating Diode
Applications
- Boost Diode
- Blocking Diode
- Recirculating Diode
Key features
- Reduced ultra-low forward voltage drop (VF); better efficiency and cooler operation.
- Reduced high temperature reverse leakage; increased reliability against thermal runaway failure in high temperature operation.
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
