DIODESDatasheet (PDF)

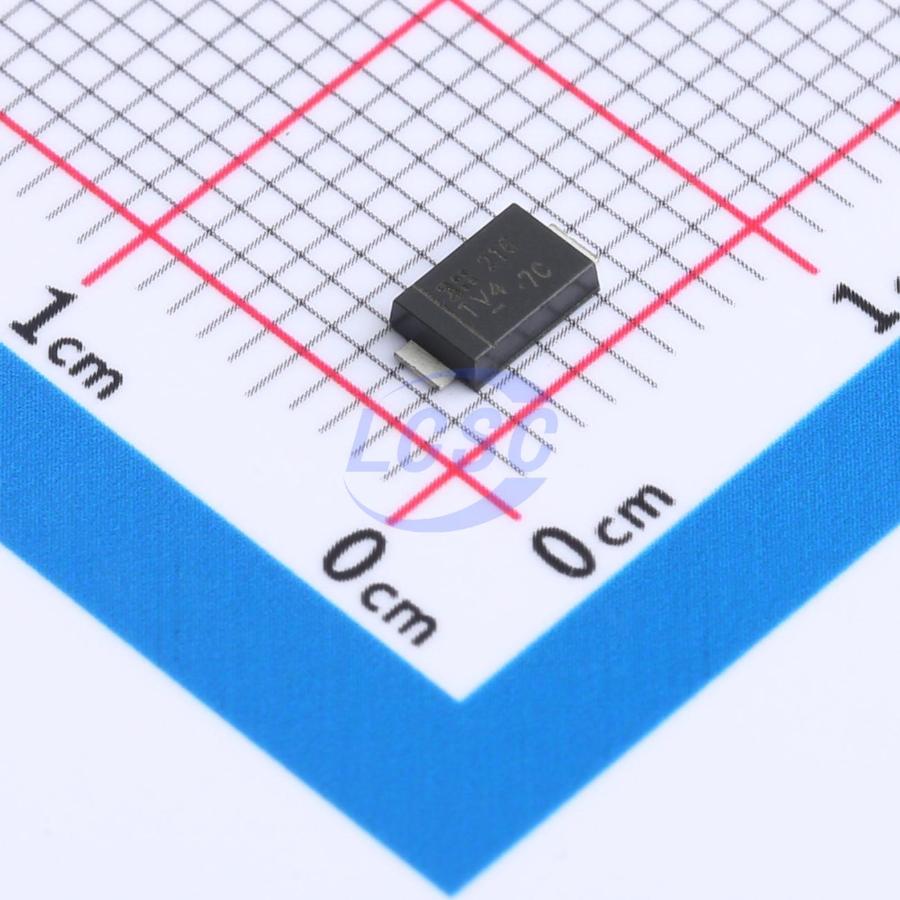

SBRT3U45SAF-13
1 Independent 45V 480mV@3A 3A DO-221AC Single Diodes RoHS
DO-221ACROHS CompliantSold out at source
Voltage： 45V Current： 3A
- Manufacturer
- DIODES
- Manufacturer part #
- SBRT3U45SAF-13
- Store part #
- C5157759
- Package / case
- DO-221AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5157759
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.10 | ₹135.50 |
| 50+ | ₹26.68 | ₹1,334.00 |
| 150+ | ₹26.42 | ₹3,963.00 |
| 500+ | ₹26.16 | ₹13,080.00 |
5 × ₹27.10
₹135.50
excl. GST
₹159.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SBRT3U45SAF-13
₹135.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 480mV@3A
- Reverse Leakage Current (Ir)
- 150uA@45V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The SBRT3U45SAF is a 3A, 45V single rectifier packaged in the low profile SMAF package. Providing excellent low VF and low reverse leakage stability at high temperatures, this device is ideal for use in general rectification applications such as: Boost Diode Blocking Diode Recirculating Diode
