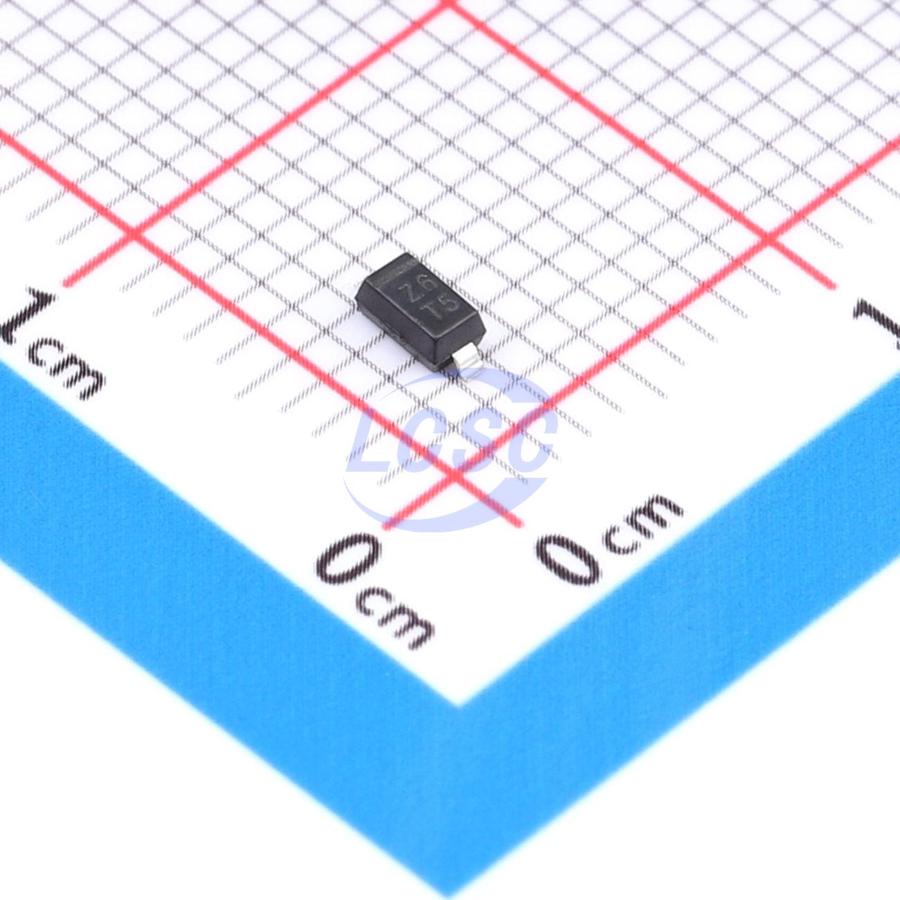

SD103AW-HE3_A-08
40V 1 Independent 600mV@200mA 350mA SOD-123 Single Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SD103AW-HE3_A-08
- Store part #
- C27498389
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C27498389
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.87 | ₹229.35 |
| 50+ | ₹35.96 | ₹1,798.00 |
| 150+ | ₹31.71 | ₹4,756.50 |
| 500+ | ₹26.41 | ₹13,205.00 |
| 3,000+ | ₹24.05 | ₹72,150.00 |
| 6,000+ | ₹22.64 | ₹1,35,840.00 |
5 × ₹45.87
₹229.35
excl. GST
₹270.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SD103AW-HE3_A-08
₹229.35 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 600mV@200mA
- Reverse Leakage Current (Ir)
- 5uA@30V
- Current - Rectified
- 350mA
- Non-Repetitive Peak Forward Surge Current
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Applications
- MOS device protection
- Fast switching applications
- Low logic level applications
- Telephone subset
- Rechargeable low-voltage battery systems
Key features
- Low forward voltage drop and fast switching characteristics make it ideal for use as a coupling diode in MOS device protection, switching, biasing, fast switching, and low logic level applications
- Other applications include snubbing, high-efficiency full-wave bridges in telephone subsets, and blocking diodes in rechargeable low-voltage battery systems
- SD103 series is a silicon-based metal Schottky barrier device protected by a PN junction guard ring
- General-purpose applications
- AEC-Q101 compliant versions available
- Molding compound meets UL 94 V-0 flammability rating
- Moisture Sensitivity Level (MSL) 1
- Base part number -E3: RoHS compliant, commercial grade
- Base part number -HE3: RoHS compliant, AEC-Q101 qualified
