DIODESDatasheet (PDF)

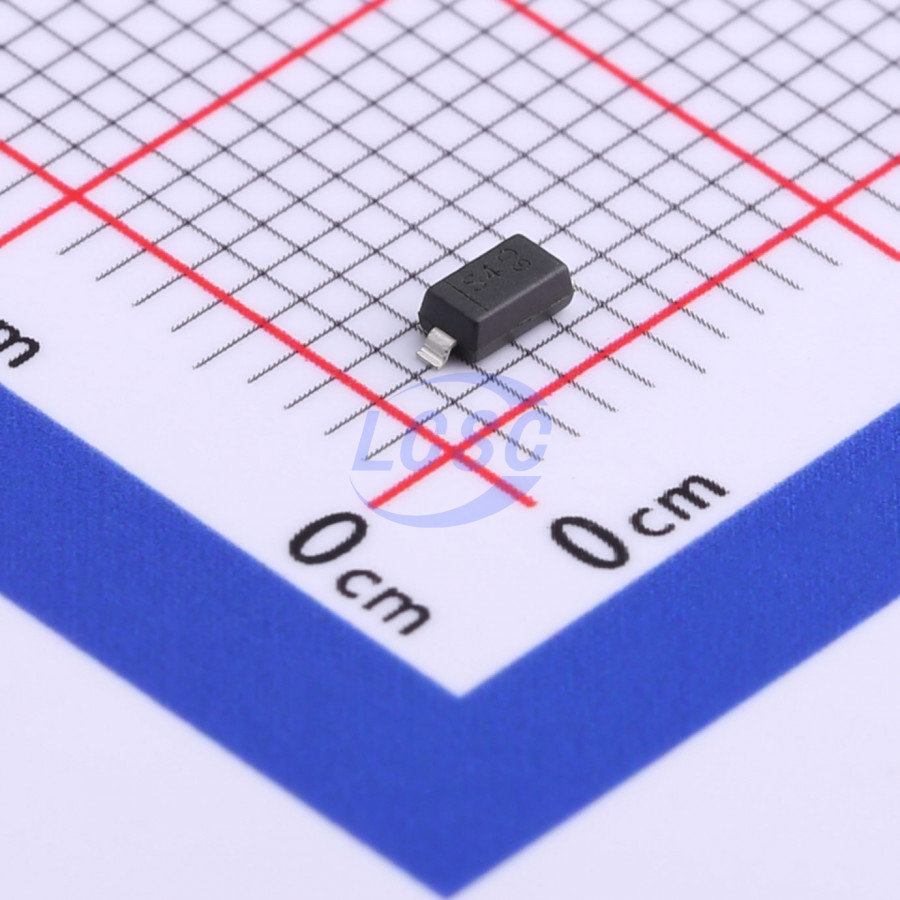

SD103CW-7-F
20V Standalone 600mV@200mA 350mA SOD-123 Single Diodes RoHS
SOD-123ROHS3 CompliantActive
Voltage： 20V Current： 350mA
- Manufacturer
- DIODES
- Manufacturer part #
- SD103CW-7-F
- Store part #
- C151833
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C151833
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.05 | ₹90.50 |
| 100+ | ₹7.24 | ₹724.00 |
| 300+ | ₹6.34 | ₹1,902.00 |
| 3,000+ | ₹5.66 | ₹16,980.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.05
₹90.50
excl. GST
₹106.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SD103CW-7-F
₹90.50 for 10 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 600mV@200mA
- Reverse Leakage Current (Ir)
- 5uA@10V
- Current - Rectified
- 350mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
These are 0.2A, 20V/30V/40V Schottky rectifiers packaged in SOD123 package.
Applications
- Low voltage rectifications
- High-efficiency DC-DC conversions
- Switch mode power supplies
- Inverse polarity protections
Key features
- Low-Forward Voltage Drop (VF)
- Better Efficiency and Cooler Operation
- Guard Ring Construction for Transient Protection
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SD103CW#C2910076JSCJ · SOD-123 | JSCJ | SOD-123 | 20 | ₹3.43 · 20 in stock | View |
 | MBR0520#C475717Shikues · SOD-123 | Shikues | SOD-123 | 8,300 | ₹2.67 · 8,300 in stock | View |
 | MBR0530#C475718Shikues · SOD-123 | Shikues | SOD-123 | 13,150 | ₹2.61 · 13,150 in stock | View |
 | SD103AW#C130875Shikues · SOD-123 | Shikues | SOD-123 | 19,250 | ₹1.55 · 19,250 in stock | View |
 | B0540W#C130887Shikues · SOD-123 | Shikues | SOD-123 | 2,460 | ₹4.01 · 2,460 in stock | View |
