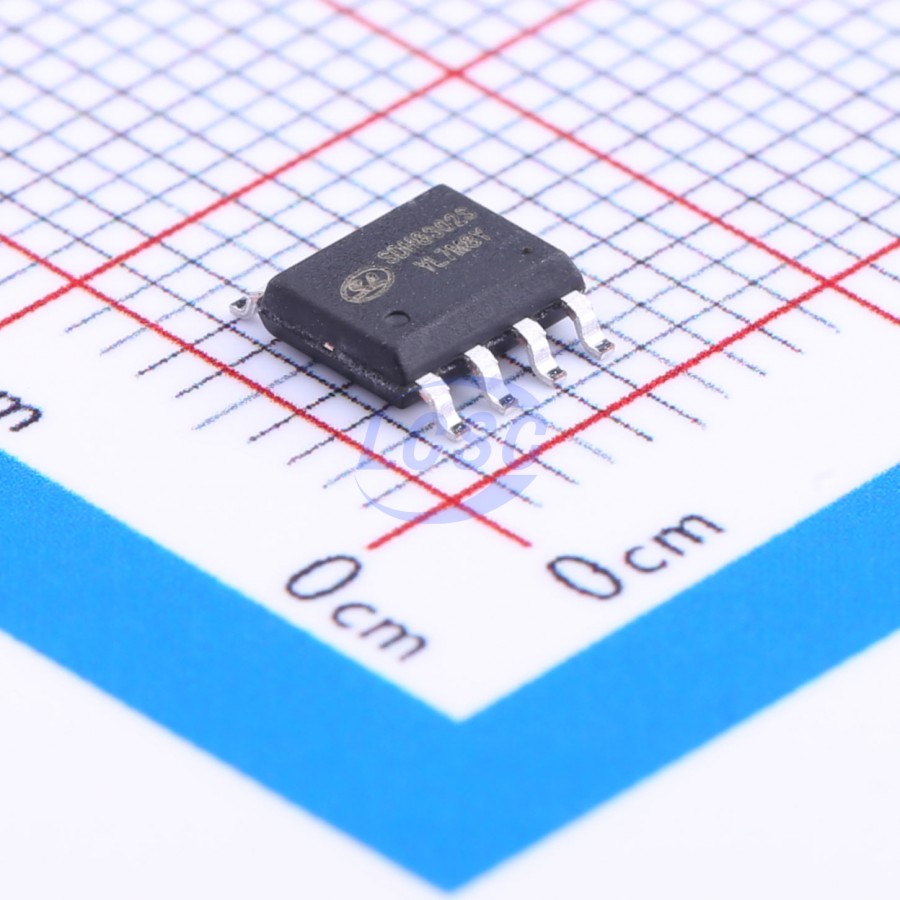

SDH8302STR

SDH8302S is a current-mode PWM controller with an integrated high-voltage MOSFET for switching power supplies. SDH8302S integrates a high-voltage startup circuit. Under light load, it enters hiccup mode to effectively reduce system standby power consumption. A frequency reduction function further optimizes conversion efficiency under light-load conditions. A frequency dithering function improves EMI performance. A soft-start function reduces device stress and prevents transformer saturation. A VDD hiccup function not only prevents VDD undervoltage restart but also effectively reduces standby power consumption. SDH8302S also integrates protection functions for various fault conditions, including: VDD undervoltage protection, VDD overvoltage protection, leading-edge blanking, output short-circuit protection, overcurrent protection, overtemperature protection, etc. After a fault is triggered, the circuit continuously auto-restarts until the system returns to normal operation. SOP-8-225-1.27

Applications

• Offline switching power supplies
• Non-isolated buck-boost converters
• Small home appliances

Key features

• High-voltage startup
• Light-load hiccup frequency reduction
• Frequency dithering
• Soft start
• VDD hiccup
• VDD under-voltage protection
• VDD over-voltage protection
• Leading-edge blanking
• Output short-circuit protection
• Over-current protection
• Over-temperature protection
