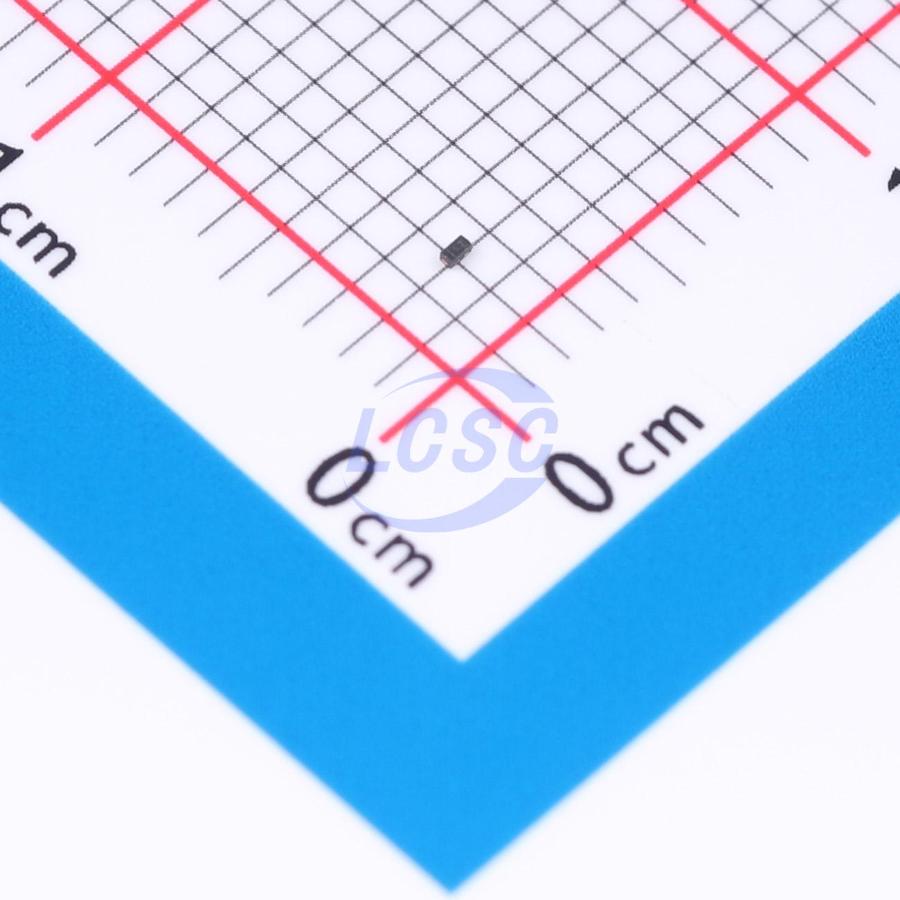

SDM02U30LP3Q-7B
1 Independent 30V 370mV@10mA 100mA X3-DFN0603-2 Single Diodes RoHS
X3-DFN0603-2ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SDM02U30LP3Q-7B
- Store part #
- C19950480
- Package / case
- X3-DFN0603-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C19950480
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.62 | ₹63.62 |
| 10+ | ₹62.99 | ₹629.90 |
| 30+ | ₹62.34 | ₹1,870.20 |
| 100+ | ₹61.90 | ₹6,190.00 |
1 × ₹63.62
₹63.62
excl. GST
₹75.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SDM02U30LP3Q-7B
₹63.62 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 370mV@10mA
- Reverse Leakage Current (Ir)
- 7uA@10V
- Current - Rectified
- 100mA
- Non-Repetitive Peak Forward Surge Current
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
SDM02U30LP3Q is a Schottky barrier diode optimized for ultra-low forward voltage drop and low reverse leakage current. The device features an ultra-compact X3-DFN0603-2 package with a footprint of 0.18mm² and an extremely low profile, designed to conserve PCB space in portable electronics.
Applications
- Reverse voltage and current protection
- Blocking diode
- Clamp protection
- LCD and keypad backlighting
- Freewheeling diode
Key features
- 0.18mm² footprint, 70% smaller than DFN1006/SOD923
- 0.35mm board-side height, 30% lower profile than DFN1006
- 0.37V maximum forward voltage for minimum power dissipation
- Low leakage current for maximum battery life
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free "green" device
- SDM02U30LP3Q suited for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, manufactured in an IATF 16949 certified facility
