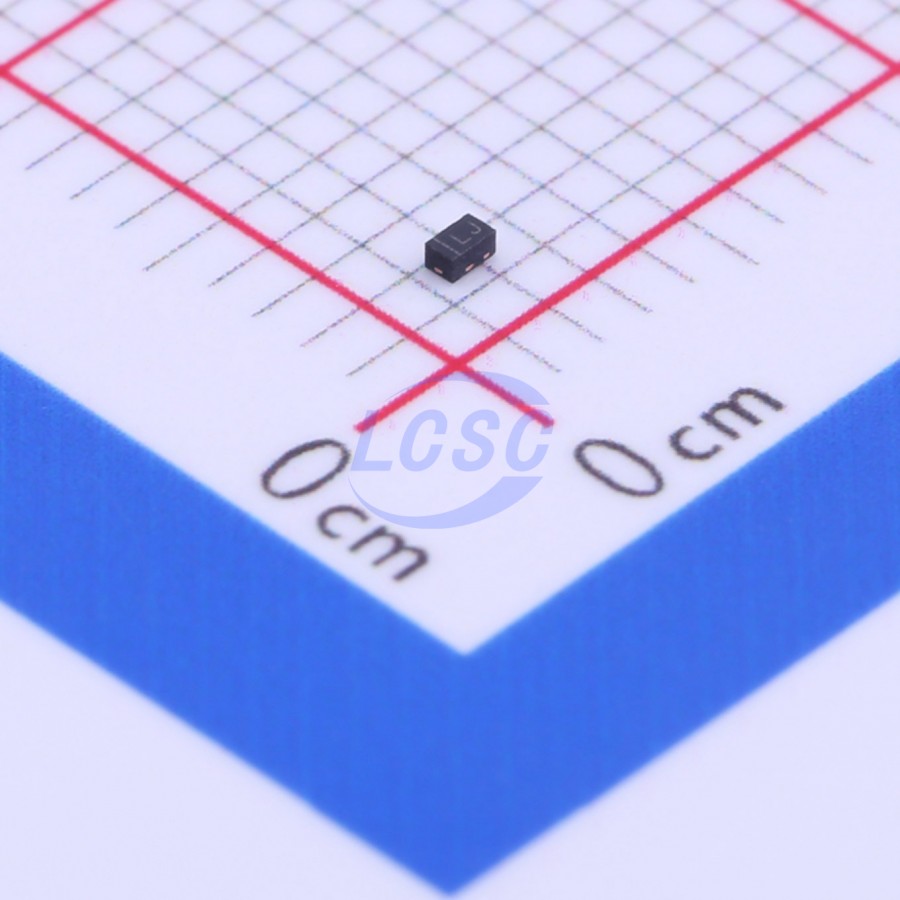

DIODESDatasheet (PDF)
SDM10U45LP-7
1 Independent 40V 800mV@100mA 100mA X1-DFN1006-2 Single Diodes RoHS
X1-DFN1006-2ROHS3 CompliantActive
Voltage: 40V Current: 100mA
- Manufacturer
- DIODES
- Manufacturer part #
- SDM10U45LP-7
- Store part #
- C78151
- Package / case
- X1-DFN1006-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,245 in stock
#C78151
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.80 | ₹129.00 |
| 50+ | ₹20.00 | ₹1,000.00 |
| 150+ | ₹17.52 | ₹2,628.00 |
| 500+ | ₹14.41 | ₹7,205.00 |
| 3,000+ | ₹13.03 | ₹39,090.00 |
| 6,000+ | ₹12.21 | ₹73,260.00 |
5 × ₹25.80
₹129.00
excl. GST
₹152.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SDM10U45LP-7
₹129.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 800mV@100mA
- Reverse Leakage Current (Ir)
- 1uA@25V
- Non-Repetitive Peak Forward Surge Current
- 1A
- Current - Rectified
- 100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Key features
- Low Forward Voltage Drop
- Guard Ring Die Construction for Transient Protection
- Low Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBR4010BS#C22391946YFW · DFN1006-2L | YFW | DFN1006-2L | 9,500 | ₹2.14 · 9,500 in stock | View |
 | LRB520BS-40T5G#C2912063LRC · SOD-882 | LRC | SOD-882 | 5,800 | ₹3.76 · 5,800 in stock | View |
 | RB521BS-40#C42371344FUXINSEMI · DFN1006-2 | FUXINSEMI | DFN1006-2 | 6,500 | ₹2.43 · 6,500 in stock | View |
 | BAS40LP-7#C124200DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | 1,132 | ₹144.11 · 1,132 in stock | View |
| BAS4002LE6327#C3312941Infineon · SOD-882 | Infineon | SOD-882 | 15 | ₹55.67 · 15 in stock | View | |
