DIODESDatasheet (PDF)
SDM1A40CSP-7
Diode Independent 40V 1A Surface Mount X3-WLB1006-2
X3-WLB1006-2ROHS3 CompliantActive
DIODE SCHOTTKY 40V X3-WLB1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- SDM1A40CSP-7
- Store part #
- C526765
- Package / case
- X3-WLB1006-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,815 in stock
#C526765
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.89 | ₹119.45 |
| 50+ | ₹18.69 | ₹934.50 |
| 150+ | ₹16.47 | ₹2,470.50 |
| 500+ | ₹13.69 | ₹6,845.00 |
| 2,500+ | ₹12.45 | ₹31,125.00 |
| 5,000+ | ₹11.71 | ₹58,550.00 |
5 × ₹23.89
₹119.45
excl. GST
₹140.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel

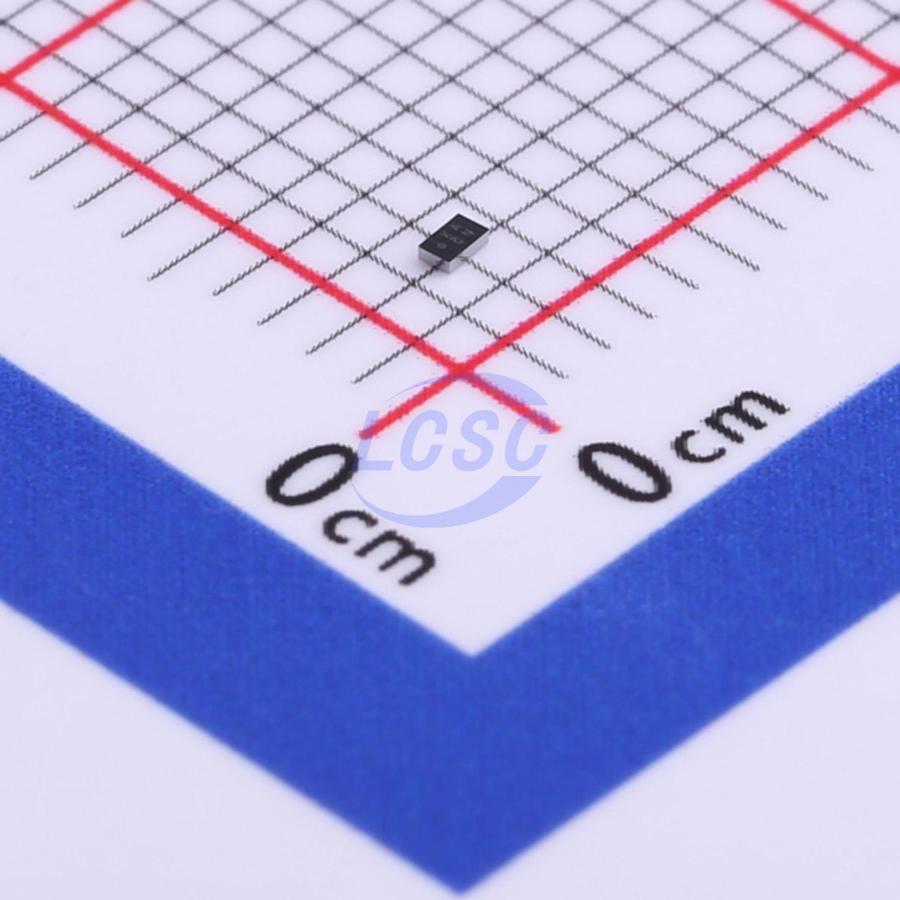

SDM1A40CSP-7
₹119.45 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 510mV@1A
- Reverse Leakage Current (Ir)
- 75uA@40V
- Non-Repetitive Peak Forward Surge Current
- 14A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.077 g
Overview
SDM1A40CSP is a 40V 1A Schottky barrier rectifier optimized for low forward voltage drop and low leakage current, housed in a compact chip-scale package (CSP) that occupies only 0.6mm² of board space. The low thermal resistance enables designers to improve efficiency while reducing board space, addressing design challenges.
Applications
- Blocking diode for portable applications
- Boost diode for portable applications
- Switching diode for portable applications
- Reverse protection diode for portable applications
Key features
- Board outline height of 0.275mm, over 30% thinner than DFN1006
- Low forward voltage (VF) minimizes conduction losses and improves efficiency
- Reduced high-temperature reverse leakage current for enhanced reliability against thermal runaway at elevated temperatures
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free "green" device
