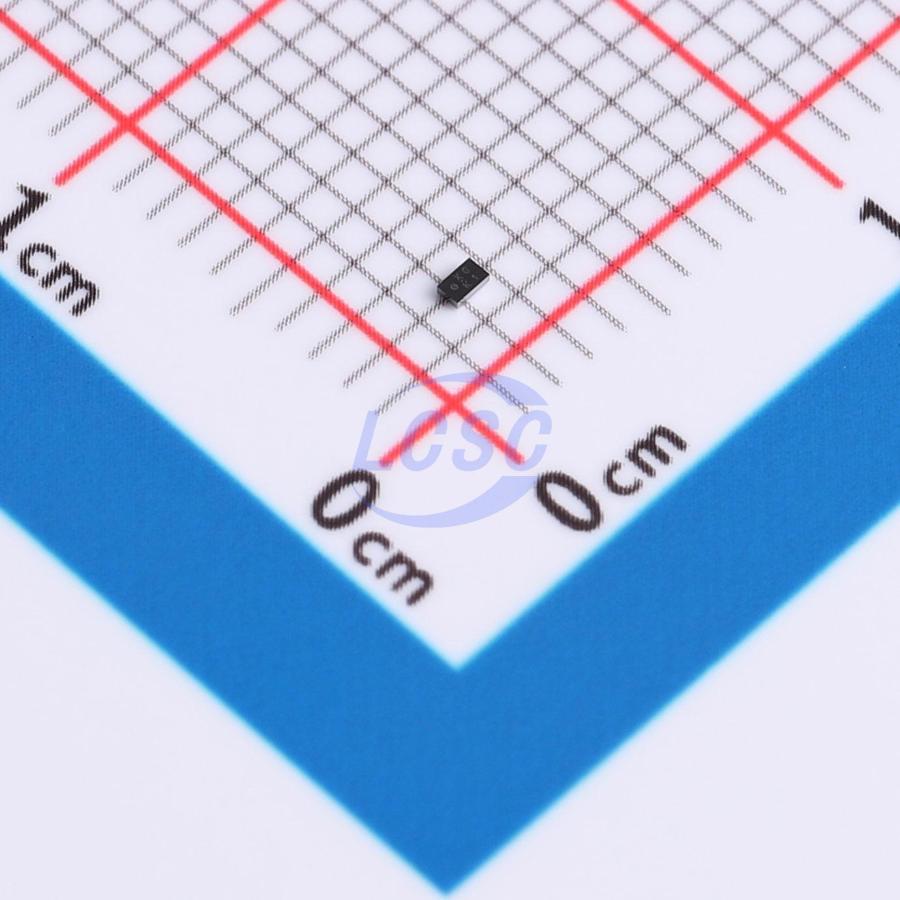

SDM1U30CP3-7
30V 500mV@1A 1A X3-DSN1006-2 Single Diodes RoHS
X3-DSN1006-2ROHS3 CompliantActive
DIODE SCHOTTKY 30V X3-DSN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- SDM1U30CP3-7
- Store part #
- C7356825
- Package / case
- X3-DSN1006-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C7356825
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.75 | ₹79.75 |
| 10+ | ₹78.68 | ₹786.80 |
| 30+ | ₹78.03 | ₹2,340.90 |
| 100+ | ₹77.17 | ₹7,717.00 |
1 × ₹79.75
₹79.75
excl. GST
₹94.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SDM1U30CP3-7
₹79.75 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 350uA@30V
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.014 g
Overview
The SDM1U30CP3 is a 30V, 1A Schottky barrier rectifier optimized for ultra-low forward voltage drop and low leakage current. It features a compact chip-scale surface mount package occupying only 0.6 mm² of board space. Low thermal resistance enables designers to improve efficiency while reducing board space, making it ideal for portable applications.
Applications
- Blocking diode
- Boost diode
- Switching diode
- Reverse protection diode
Key features
- Board outline 0.275mm, over 30% thinner than DFN1006
- Ultra-low forward voltage (VF) minimizes conduction losses and improves efficiency
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free "green" device
