DIODESDatasheet (PDF)

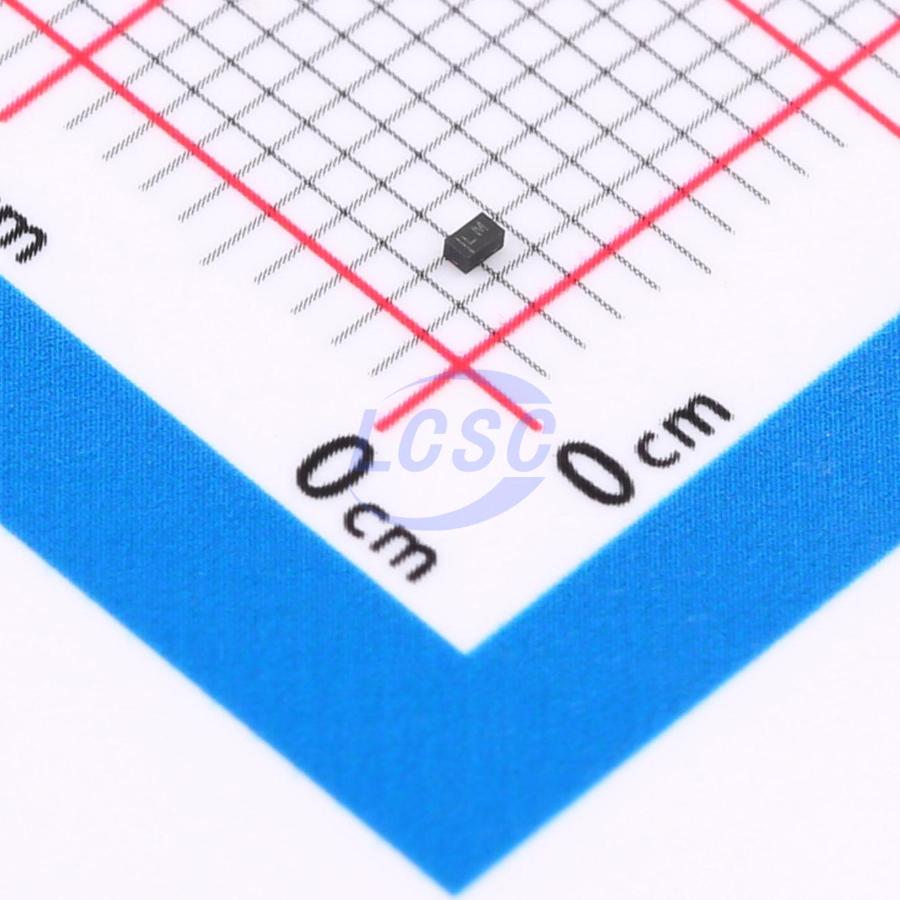

SDM20U30LP-7
1 Independent 30V 575mV@200mA 200mA X1-DFN1006-2 Single Diodes RoHS
X1-DFN1006-2ROHS3 CompliantActive
Voltage： 30V Current： 200mA
- Manufacturer
- DIODES
- Manufacturer part #
- SDM20U30LP-7
- Store part #
- C139438
- Package / case
- X1-DFN1006-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C139438
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.89 | ₹117.80 |
| 200+ | ₹4.82 | ₹964.00 |
| 600+ | ₹4.23 | ₹2,538.00 |
| 3,000+ | ₹3.88 | ₹11,640.00 |
| 9,000+ | ₹3.57 | ₹32,130.00 |
| 21,000+ | ₹3.41 | ₹71,610.00 |
20 × ₹5.89
₹117.80
excl. GST
₹139.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SDM20U30LP-7
₹117.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 575mV@200mA
- Reverse Leakage Current (Ir)
- 150uA@30V
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
Key features
- Low-Forward Voltage Drop
- Guard Ring Construction for Transient Protection
- Low Capacitance
- Ultra-Small Surface-Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to - JEDEC standards (as references in AEC-Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG4002ELD,315#C5247957Nexperia · SOD-882D | Nexperia | SOD-882D | 3,205 | ₹20.52 · 3,205 in stock | View |
 | NSR10404NX-MS#C2847061MSKSEMI · DFN1006-2 | MSKSEMI | DFN1006-2 | 1,240 | ₹5.05 · 1,240 in stock | View |
 | PSBD2FD40V1H#C492733Shanghai Prisemi Elec · DFN1006-2L | Shanghai Prisemi Elec | DFN1006-2L | 19,050 | ₹3.31 · 19,050 in stock | View |
 | NSR0240MX2WT5G#C896423onsemi · DFN-2(0.6x1) | onsemi | DFN-2(0.6x1) | 490 | ₹43.02 · 490 in stock | View |
 | LRB551BS-30T5G#C2936688LRC · SOD-882 | LRC | SOD-882 | 7,120 | ₹3.51 · 7,120 in stock | View |
