DIODESDatasheet (PDF)

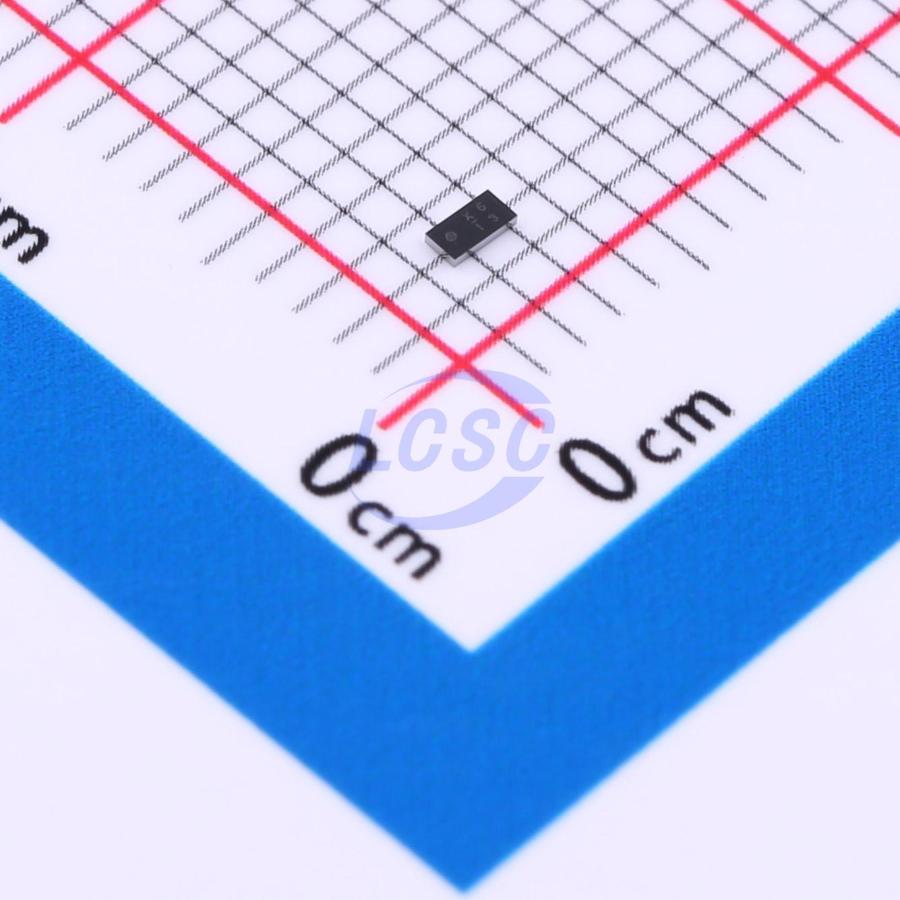

SDM2U40CSP-7B
1 Independent 40V 530mV@2A 2A X3-WLB1608-2 Single Diodes RoHS
X3-WLB1608-2ROHS3 CompliantActive
Voltage: 40V Current: 2A
- Manufacturer
- DIODES
- Manufacturer part #
- SDM2U40CSP-7B
- Store part #
- C5125759
- Package / case
- X3-WLB1608-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C5125759
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.58 | ₹122.90 |
| 50+ | ₹19.90 | ₹995.00 |
| 150+ | ₹17.54 | ₹2,631.00 |
| 500+ | ₹15.78 | ₹7,890.00 |
| 2,500+ | ₹13.79 | ₹34,475.00 |
| 5,000+ | ₹13.08 | ₹65,400.00 |
5 × ₹24.58
₹122.90
excl. GST
₹145.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SDM2U40CSP-7B
₹122.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 530mV@2A
- Reverse Leakage Current (Ir)
- 150uA@40V
- Non-Repetitive Peak Forward Surge Current
- 28A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.007 g
Overview
The SDM2U40CSP is a 40-volt 2A Schottky Barrier Rectifier that is optimized for low forward voltage drop and low leakage current, housed in a compact chip scale package (CSP) that occupies only 1.28mm^2 board space with low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency whilst at the same time reducing board space.
Applications
- Blocking Diode
- Boost Diode
- Switching Diode
- Reverse Protection Diode
Key features
- Low forward voltage (VF) minimizes conduction losses and improves efficiency.
- Reduced high temperature reverse leakage
- Increased reliability against thermal runaway failure in high temperature operation
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SDM2A40CSP-7B#C6671609DIODES · X3-WLB1608-2 | DIODES | X3-WLB1608-2 | 1,165 | ₹19.58 · 1,165 in stock | View |
 | TPB2A40-1608#C22358694TECH PUBLIC · DFN1608-2 | TECH PUBLIC | DFN1608-2 | 3,990 | ₹10.27 · 3,990 in stock | View |
