DIODESDatasheet (PDF)

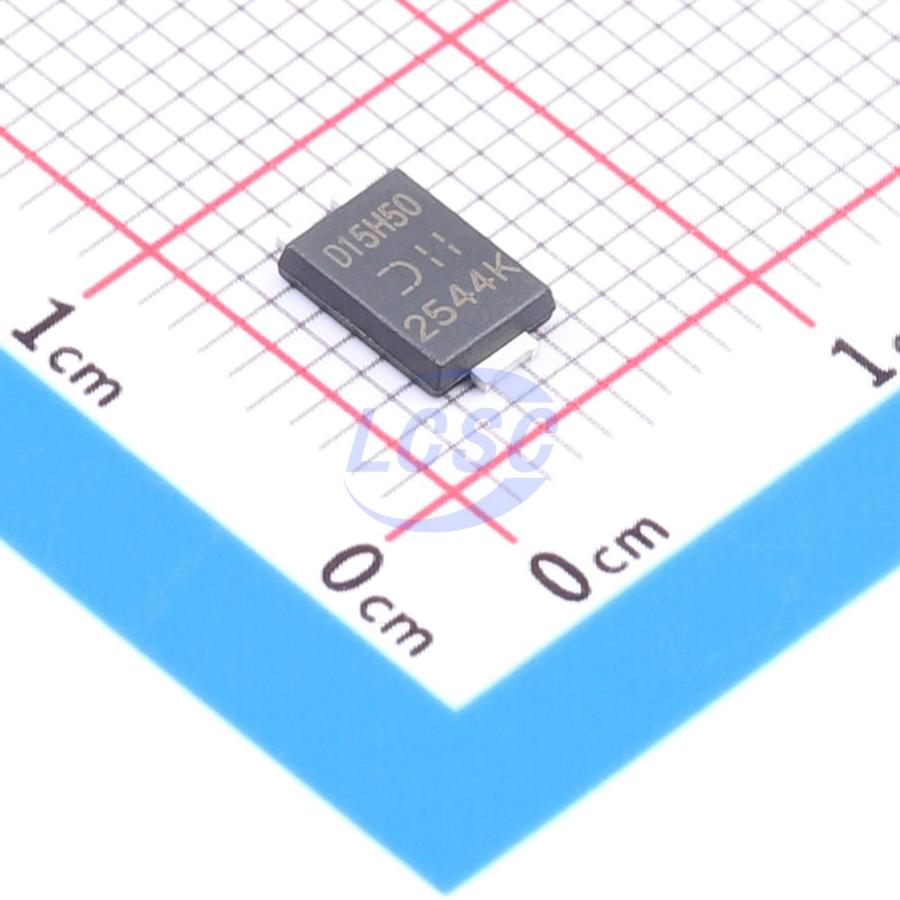

SDT15H50P5-13
1 Independent 50V 470mV@15A 15A PowerDI5 Single Diodes RoHS
PowerDI5ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SDT15H50P5-13
- Store part #
- C5909320
- Package / case
- PowerDI5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C5909320
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.60 | ₹162.60 |
| 10+ | ₹135.17 | ₹1,351.70 |
| 30+ | ₹119.93 | ₹3,597.90 |
| 100+ | ₹102.96 | ₹10,296.00 |
| 500+ | ₹95.34 | ₹47,670.00 |
| 1,000+ | ₹91.86 | ₹91,860.00 |
1 × ₹162.60
₹162.60
excl. GST
₹191.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SDT15H50P5-13
₹162.60 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 470mV@15A
- Reverse Leakage Current (Ir)
- 500uA@50V
- Current - Rectified
- 15A
- Non-Repetitive Peak Forward Surge Current
- 290A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.193 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SDT15H50P5-7#C5329410DIODES · PowerDI5 | DIODES | PowerDI5 | 24 | ₹222.08 · 24 in stock | View |
 | G15H150D5#C6258690DIODES · PowerDI5 | DIODES | PowerDI5 | 95 | ₹99.49 · 95 in stock | View |
| SDT15H50P5-13D#C5886167DIODES · PowerDI5 | DIODES | PowerDI5 | On request | ₹70.57 · 0 in stock | View | |
| SDT15H50P5-7D#C7000085DIODES · PowerDI5 | DIODES | PowerDI5 | On request | ₹80.60 · 0 in stock | View | |
 | SDT15H100P5-7#C5886165DIODES · PowerDI5 | DIODES | PowerDI5 | On request | ₹214.09 · 0 in stock | View |
