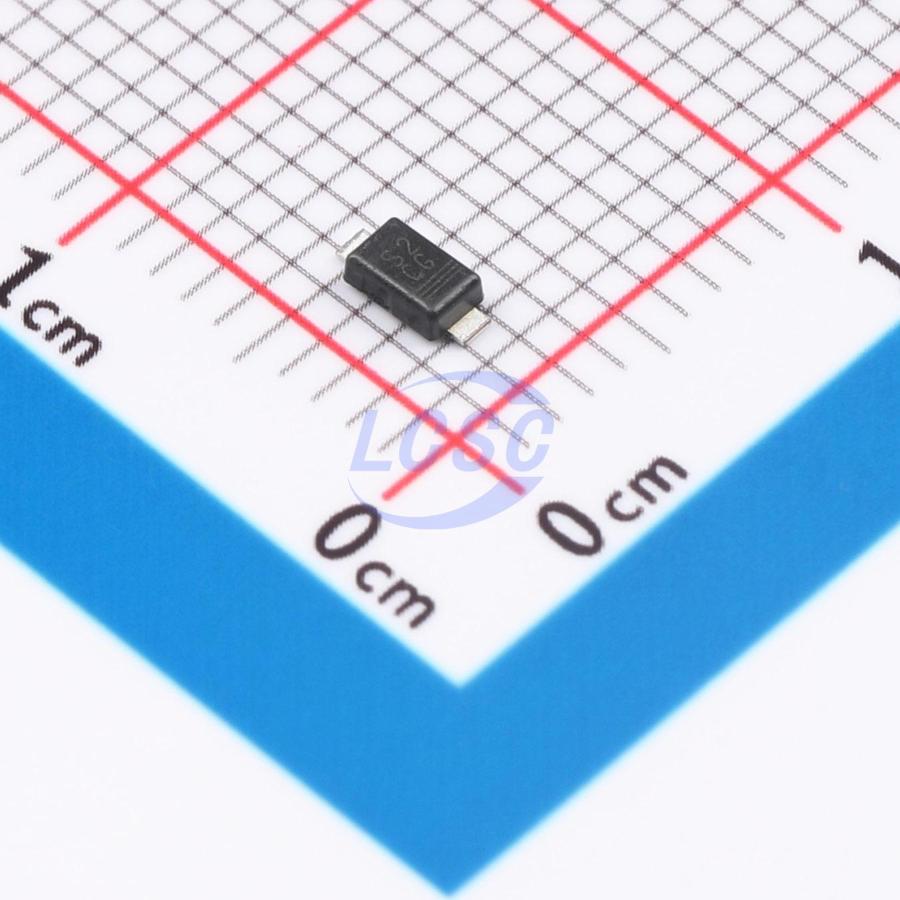

SE20FGHM3/I
Diode 1 Independent 400V 2A Surface Mount DO-219AB(SMF)
DO-219AB(SMF)ROHS CompliantActive
DIODE STANDARD 400V 2A DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- SE20FGHM3/I
- Store part #
- C17348674
- Package / case
- DO-219AB(SMF)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C17348674
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.55 | ₹49.55 |
| 10+ | ₹48.46 | ₹484.60 |
| 30+ | ₹47.59 | ₹1,427.70 |
| 100+ | ₹46.94 | ₹4,694.00 |
1 × ₹49.55
₹49.55
excl. GST
₹58.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SE20FGHM3/I
₹49.55 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.1V@2A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 2A
- Non-Repetitive Peak Forward Surge Current
- 35A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.023 g
Overview
Applications
- General purpose
- Power line polarity protection
- Commercial applications
- Industrial applications
- Automotive applications
Key features
- Low profile package Available
- Ideal for automated placement
- Oxide planar chip junction
- Low forward voltage drop, low leakage current RoHS COMPLIANT
- ESD capability HALOGEN
- Meets MSL level 1, per J-STD-020, FREE LF maximum peak of 260 ℃
- Wave and reflow solderable
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
- Compatible to SOD-123W package case outline
