VISHAYDatasheet (PDF)

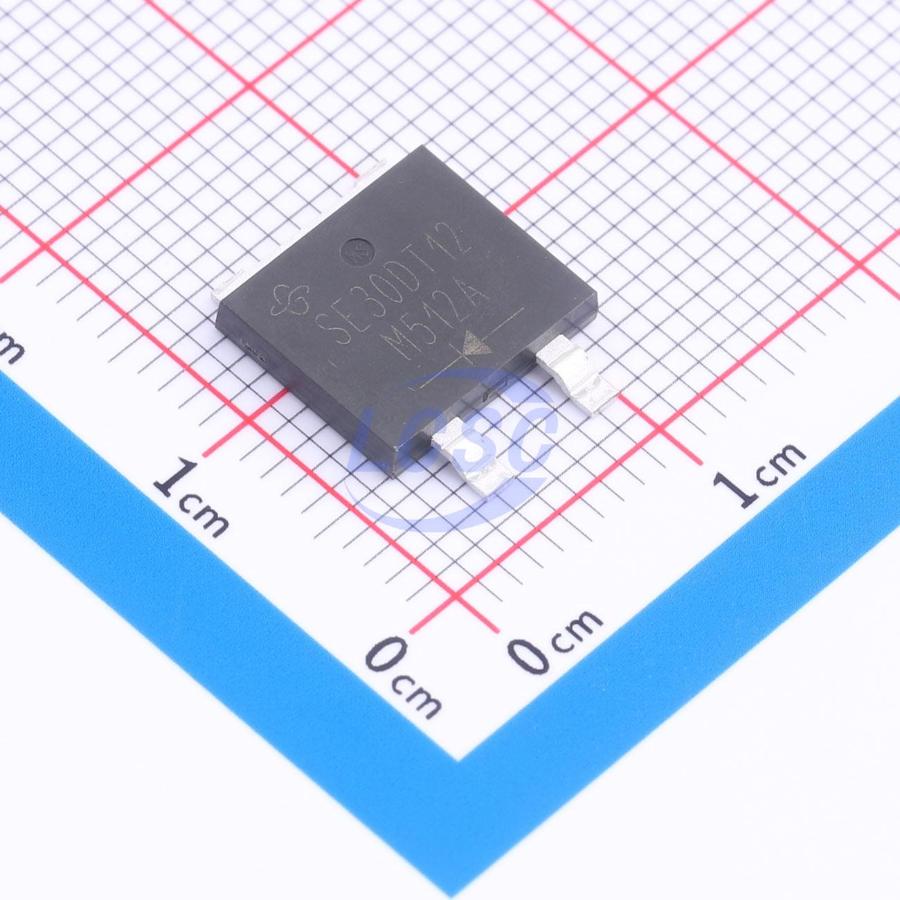

SE30DT12HM3/I
1.2kV 1 Independent 1.29V@30A 30A TO-263-3 Single Diodes RoHS
TO-263-3ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SE30DT12HM3/I
- Store part #
- C17233276
- Package / case
- TO-263-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C17233276
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹512.77 | ₹512.77 |
| 10+ | ₹434.41 | ₹4,344.10 |
| 30+ | ₹387.94 | ₹11,638.20 |
| 100+ | ₹340.83 | ₹34,083.00 |
| 500+ | ₹319.35 | ₹1,59,675.00 |
| 1,000+ | ₹309.58 | ₹3,09,580.00 |
1 × ₹512.77
₹512.77
excl. GST
₹605.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SE30DT12HM3/I
₹512.77 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.29V@30A
- Reverse Leakage Current (Ir)
- 10uA
- Non-Repetitive Peak Forward Surge Current
- 300A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.743 g
Overview
Applications
- Onboard charger, charging station, bridge function
Key features
- Typical creepage distance and clearance: 3.7mm
- Ultra-low profile, typical height: 1.7mm
- Suitable for automated placement
- Oxide planar chip junction
- Low forward voltage drop
- AEC-Q101 qualified
- MSL Level 1 per J-STD-020, LF max peak temperature 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SE30DT12-M3/I#C17651047VISHAY · TO-263-3 | VISHAY | TO-263-3 | On request | ₹297.58 · 0 in stock | View | |
