Seaward ElecDatasheet (PDF)

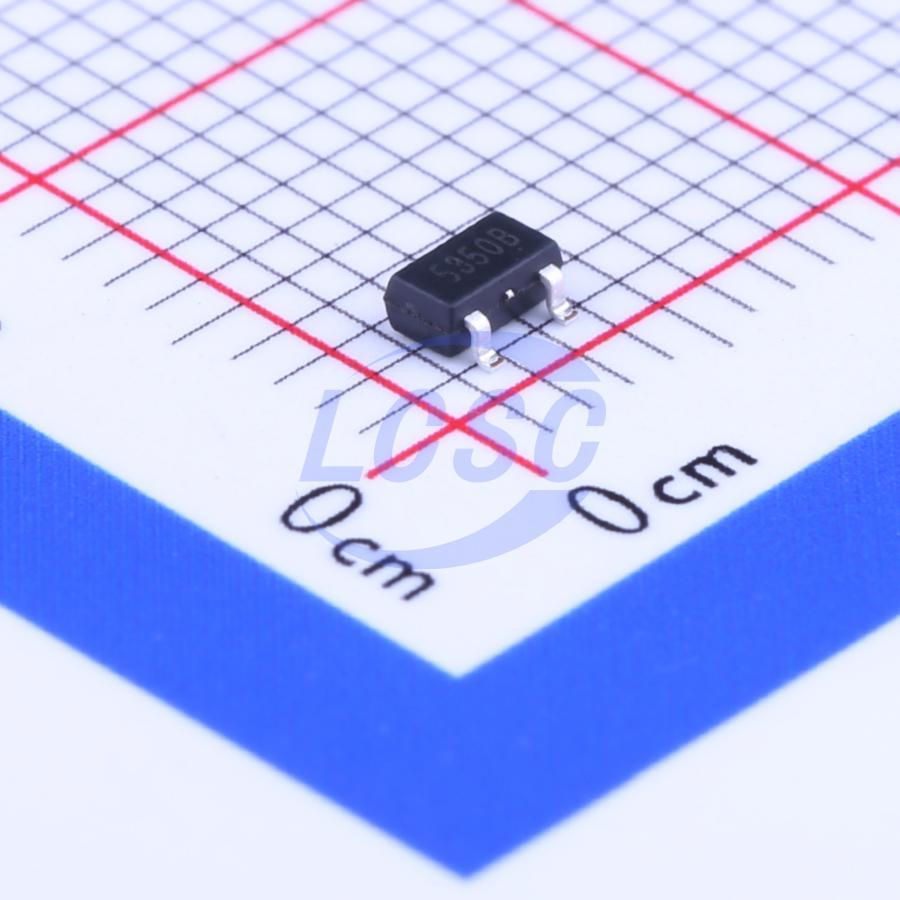

SE8550X2-HF
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
40V/2μA/200mA, Ultra-Low-lq, Low Dropout LDO
- Manufacturer
- Seaward Elec
- Manufacturer part #
- SE8550X2-HF
- Store part #
- C115015
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,600 in stock
#C115015
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.12 | ₹105.60 |
| 50+ | ₹16.39 | ₹819.50 |
| 150+ | ₹14.37 | ₹2,155.50 |
| 500+ | ₹11.84 | ₹5,920.00 |
| 3,000+ | ₹10.72 | ₹32,160.00 |
| 6,000+ | ₹10.04 | ₹60,240.00 |
5 × ₹21.12
₹105.60
excl. GST
₹124.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SE8550X2-HF
₹105.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -20℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 200mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
SE85XX series is designed for power-sensitive applications. It includes a precision and high voltage input stage, an ultra-low-power bias current branch, and results in a ultra-low-power and lowdropout linear regulator.
Applications
- Battery-powered Smoke sensor
- Smoke sensor Microcontrollers
- Household appliances and instruments
Key features
- Ultra Low Quiescent Current: 2.5 μA(Typ.)
- Wide Operating Voltage: VOUT + 1V to 35V
- High output current: ≥ 200mA
- System startup with no overshoot
- Short circuit protection is designed with no overshoot
- UVLO 1.8V
- Low Dropout Voltage
- Excellent power / load transient response
- Low temperature coefficient: ±100ppm/℃
- Thermal and Short-Circuit Protection
- SOT-89、SOT-23、SOT23-5 package
- Customer Pin Assignments are available
