SGMICRODatasheet (PDF)

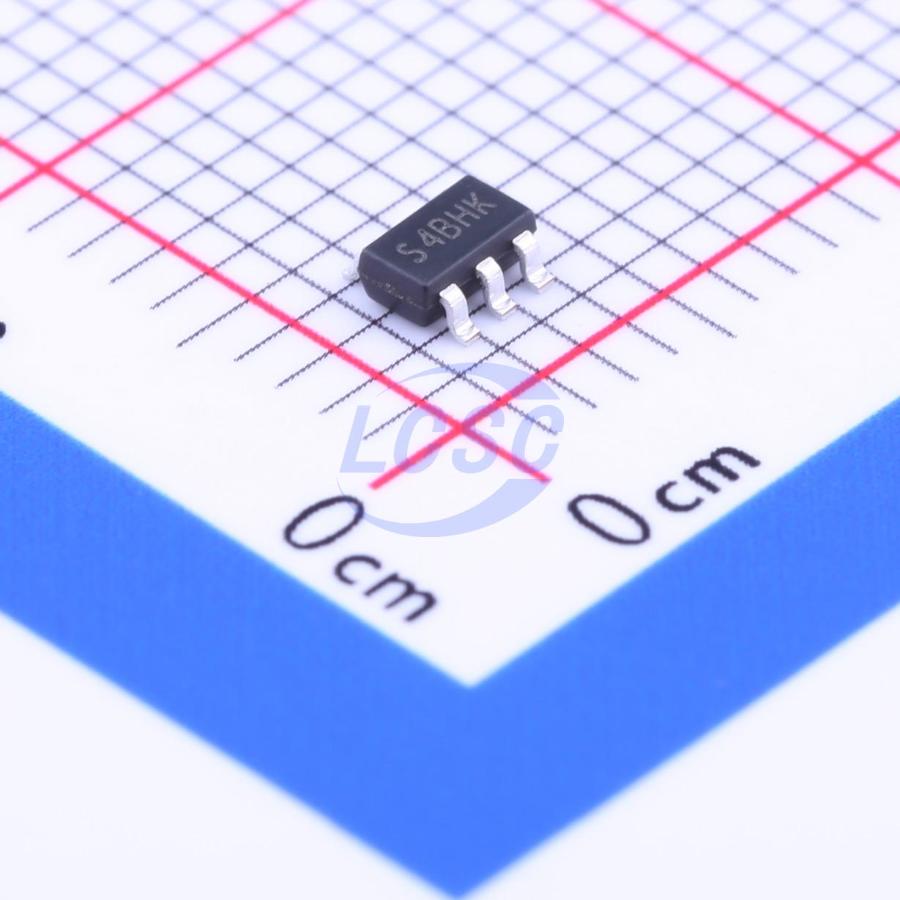

SGM2028-ADJYN5G/TR
1.2V~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA, Ultra Low Dropout, Low Power, RF Linear Regulators
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM2028-ADJYN5G/TR
- Store part #
- C80894
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,380 in stock
#C80894
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.12 | ₹215.60 |
| 50+ | ₹32.19 | ₹1,609.50 |
| 150+ | ₹27.51 | ₹4,126.50 |
| 500+ | ₹21.67 | ₹10,835.00 |
5 × ₹43.12
₹215.60
excl. GST
₹254.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM2028-ADJYN5G/TR
₹215.60 for 5 + GST
Specifications
- Output Voltage
- 1.2V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 115uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Noise bypass terminal;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The SGM2028 is a low-power, low-noise, low-dropout, CMOS linear voltage regulator that operates from a 2.5V to 5.5V input voltage. It is the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The SGM2028 also offers ultra low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage source, such as RF applications, will benefit from the SGM2028’s ultra low output noise (30μV_RMS) and high PSRR. An external noise bypass capacitor connected to the device’s BP pin can further reduce the noise level. Other features include output current limit and thermal shutdown protection.
Applications
- Cellular Telephones
- Cordless Telephones
- PCMCIA Cards
- Modems
- MP3 Player
- Hand-Held Instruments
- Palmtop Computers
- Electronic Planners
- Portable/Battery-Powered Equipment
Key features
- 500mA Guaranteed Output Current
- Ultra Low Dropout Voltage
- Low Output Noise
- Thermal-Overload Protection
- Output Current Limit
- High PSRR (73dB at 1kHz)
- SGM2028-2.8, SGM2028-3.0 and SGM2028-ADJ: 110kΩ Pull Down Resistor at EN Pin
- SGM2028-3.3: No Pull Down Resistor at EN Pin
- Available Fixed Output Voltages: 2.8V, 3.0V and 3.3V
- Adjustable Output from 1.2V to 5.0V
- -40°C to +85°C Operating Temperature Range
- Available in Green SOT-23-5 Package
