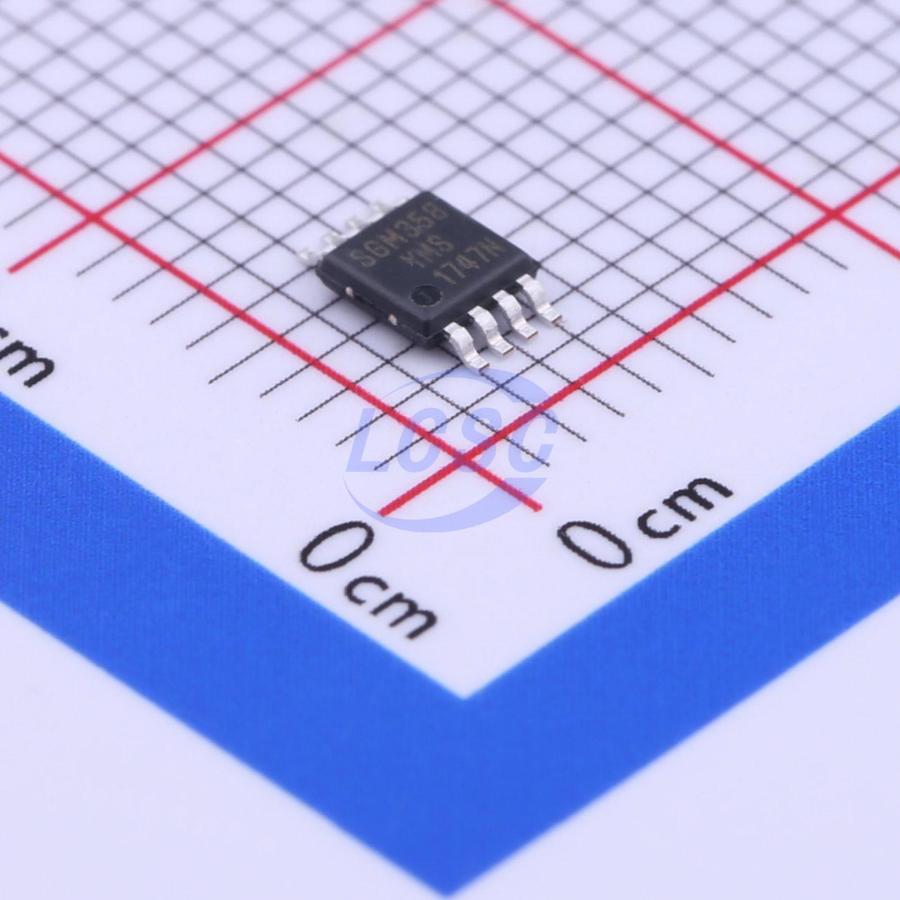

SGM358YMS/TR

84mA 2 5.6mV 520V/ms 10pA 70dB 60uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS CompliantActive

1MHz, 60uA, Rail-to-Rail I/O, CMos Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM358YMS/TR
Store part #: C79306
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,245 in stock

#C79306

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹51.82	₹259.10
50+	₹38.61	₹1,930.50
150+	₹32.96	₹4,944.00
500+	₹26.02	₹13,010.00

Quantity (min 5, multiples of 5)

5 × ₹51.82

₹259.10

excl. GST

₹305.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM358YMS/TR

₹259.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 84mA
Number of Channels: 2
Vos - Input Offset Voltage: 5.6mV
Slew Rate: 520V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 60uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: 1.05V~2.75V;-2.75V~-1.05V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

The SGM321 (single), SGM358 (dual) and SGM324 (quad) are low cost, rail-to-rail input and output voltage feedback amplifiers. They have a wide input common mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V. The maximum recommended supply voltage is 5.5V. All are specified over the extended -40°C to +85°C temperature range.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Piezoelectric Transducer Amplifier
Medical Instrumentation
Mobile Communication
Audio Output
Portable Systems
Smoke Detectors
Notebook PC
PCMCIA Cards
Battery-Powered Equipment
DSP Interface

Key features

Rail-to-Rail Input and Output 0.8mv Typical VOS Unity Gain Stable
Gain-Bandwidth Product: 1MHz
Very Low Input Bias Current: 10pA
Supply Voltage Range: 2.1V to 5.5V
Input Voltage Range: -0.1V to +5.68 with Vs = 5.5V
Low Supply Current: 60μA/Amplifier
Small Packaging
SGM321 Available in SOT-23-5 and SC70-5
SGM358 Available in SOIC-8, MSOP-8 and DIP-8
SGM324 Available in SOIC-14 and TSSOP-14
