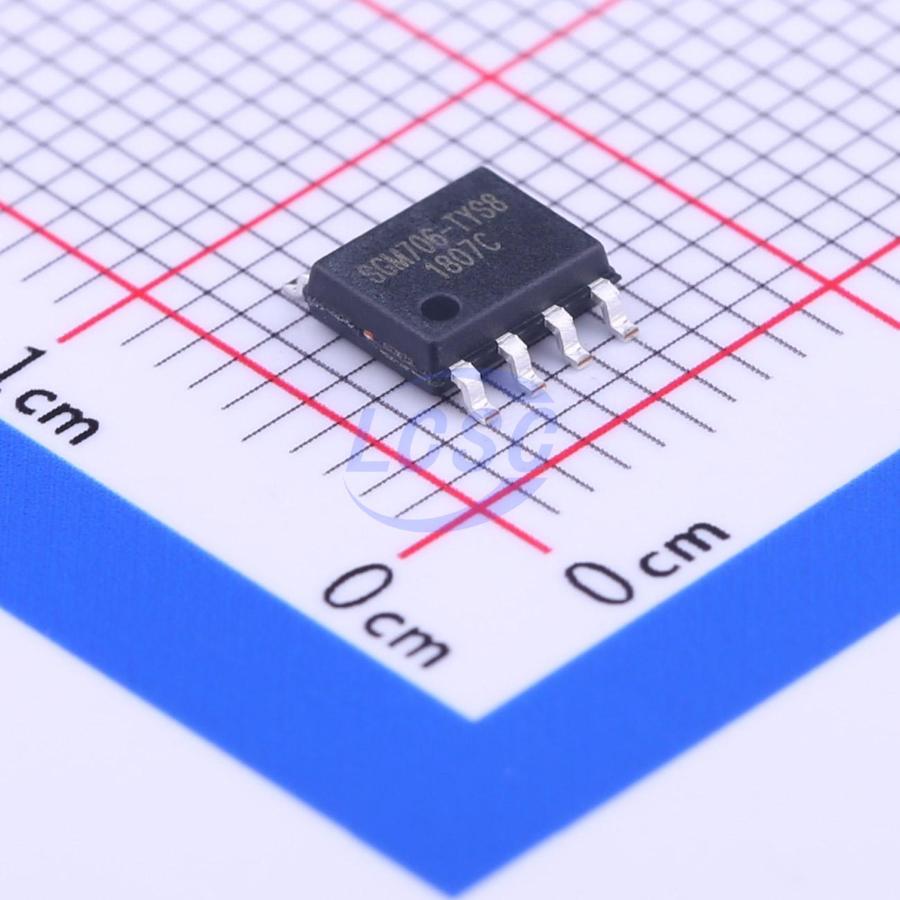

SGM706-TYS8G/TR
200ms Active Low 1V~5.5V 2 SOIC-8 Supervisors
Low-Cost, Microprocessor Supervisory Circuit
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM706-TYS8G/TR
- Store part #
- C122730
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,378 in stock
#C122730
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.81 | ₹85.81 |
| 10+ | ₹64.19 | ₹641.90 |
| 30+ | ₹54.90 | ₹1,647.00 |
| 100+ | ₹43.24 | ₹4,324.00 |
1 × ₹85.81
₹85.81
excl. GST
₹101.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SGM706-TYS8G/TR
₹85.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 50uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
The SGM706 microprocessor supervisory circuit reduces the complexity and number of components required to monitor power-supply and monitor microprocessor activity. It significantly improves system reliability and accuracy compared to separate ICs or discrete components. The SGM706 provides power-supply monitoring circuitry that generates a reset output during power-up, power-down and brownout conditions. The reset output remains operational with VCC as low as 1V. Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.6 seconds. In addition, there is a 1.25V threshold detector for power-fail warning, low-battery detection, or monitoring an additional power supply. An active-low manual-reset input ( MR ) is also included. The SGM706 is available in Green SOIC-8 package. The SGM706-S is available in both Green SOIC-8 and MSOP-8 packages. They operate over an ambient temperature range of -40°C to +85°C.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Automotive Systems
- Critical μP Power Monitoring
Key features
- Precision Supply-Voltage Monitor 4.65V for SGM706-L 4.40V for SGM706-M 4.0V for SGM706-J 3.08V for SGM706-T 2.93V for SGM706-S 2.63V for SGM706-R
- Guaranteed RESET Valid at VCC = 1V
- 200ms Reset Pulse Width Debounced TTL/CMOS-Compatible Manual-Reset Input Independent Watchdog Timer (1.6sec) Timeout
- Voltage Monitor for Power-Fail or Low-Battery Warning -40°C to ±85°C Operating Temperature Range
- SGM706 is Available in Green SOIC-8 Package SGM706-S is Available in both Green SOIC-8 and MSOP-8 Packages
