VBsemi ElecDatasheet (PDF)

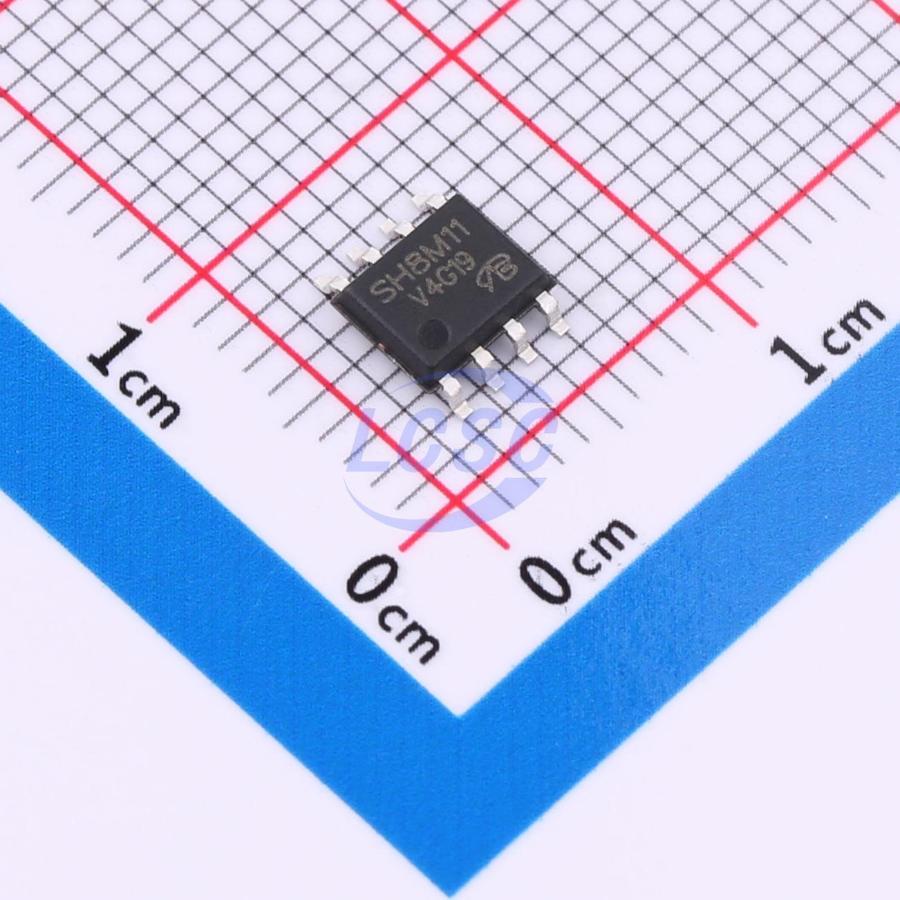

SH8M11TB-VB
N-Channel+P-Channel Array 30V 8A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SH8M11TB-VB
- Store part #
- C29779015
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29779015
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.84 | ₹50.84 |
| 10+ | ₹39.91 | ₹399.10 |
| 30+ | ₹35.30 | ₹1,059.00 |
| 100+ | ₹29.41 | ₹2,941.00 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 1,000+ | ₹25.22 | ₹25,220.00 |
1 × ₹50.84
₹50.84
excl. GST
₹59.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SH8M11TB-VB
₹50.84 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 115pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 57pF
- RDS(on)
- 40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 18.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Motor Drive - Power Bank
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HM4622-VB#C19188157VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 36 | ₹53.56 · 36 in stock | View |
 | SPC4539S8RGB-VB#C19632039VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 35 | ₹52.93 · 35 in stock | View |
 | AP4506GEM-VB#C22389559VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 13 | ₹50.84 · 13 in stock | View |
 | SI4544DY-T1-E3-VB#C22389593VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹65.32 · 40 in stock | View |
 | STM8309-VB#C29778712VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 60 | ₹67.92 · 60 in stock | View |
