VISHAYDatasheet (PDF)

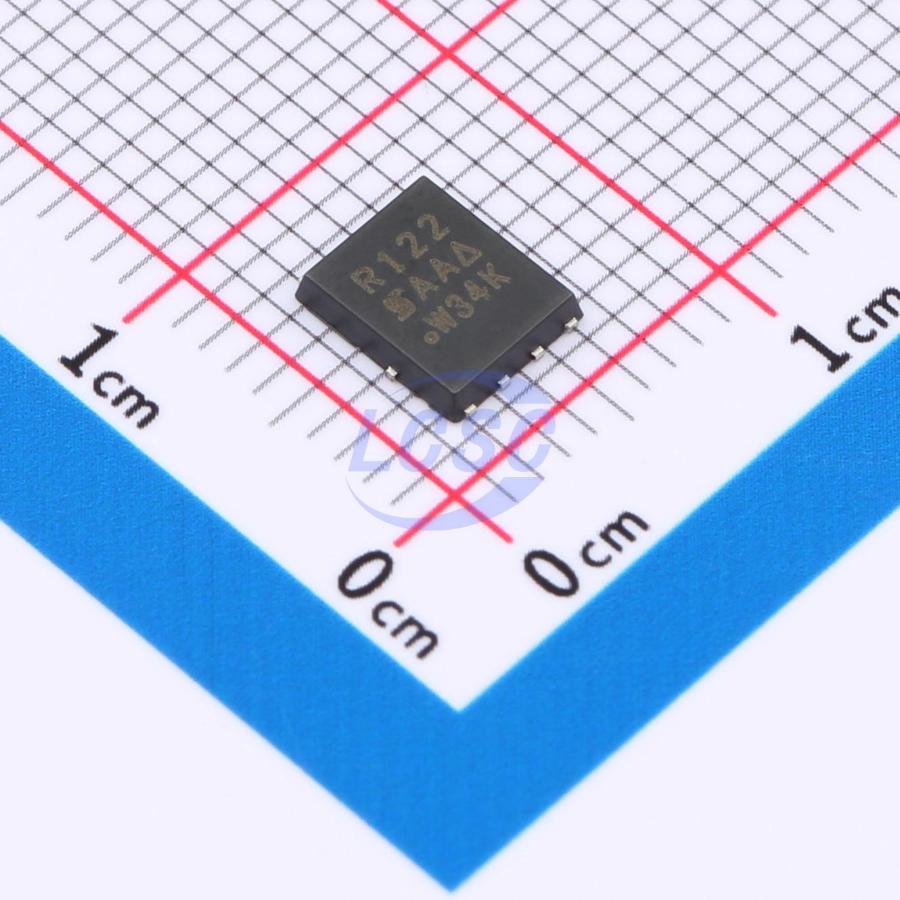

SIR122DP-T1-RE3
N-Channel 80V 59.6A 65.7W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 80V 59.6A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR122DP-T1-RE3
- Store part #
- C3279542
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C3279542
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.28 | ₹174.28 |
| 10+ | ₹143.64 | ₹1,436.40 |
| 30+ | ₹126.69 | ₹3,800.70 |
| 100+ | ₹107.78 | ₹10,778.00 |
| 500+ | ₹99.32 | ₹49,660.00 |
| 1,000+ | ₹95.61 | ₹95,610.00 |
1 × ₹174.28
₹174.28
excl. GST
₹205.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR122DP-T1-RE3
₹174.28 for 1 + GST
Specifications
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 240pF
- Current - Continuous Drain(Id)
- 59.6A
- Ciss-Input Capacitance
- 1.95nF
- Pd - Power Dissipation
- 65.7W
- Reverse Transfer Capacitance (Crss)
- 12.5pF
- RDS(on)
- 9mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converters
- OR-ing
- Power supplies
- Motor drive control
- Battery and load switch
Key features
- TrenchFET Gen IV power MOSFET
- Very low RDS - Qg figure-of-merit (FOM)
- Tuned for the lowest RDS - Qoss FOM
- RoHS COMPLIANT
- HALOGEN FREE
- 100 % Rg and UIS tested
