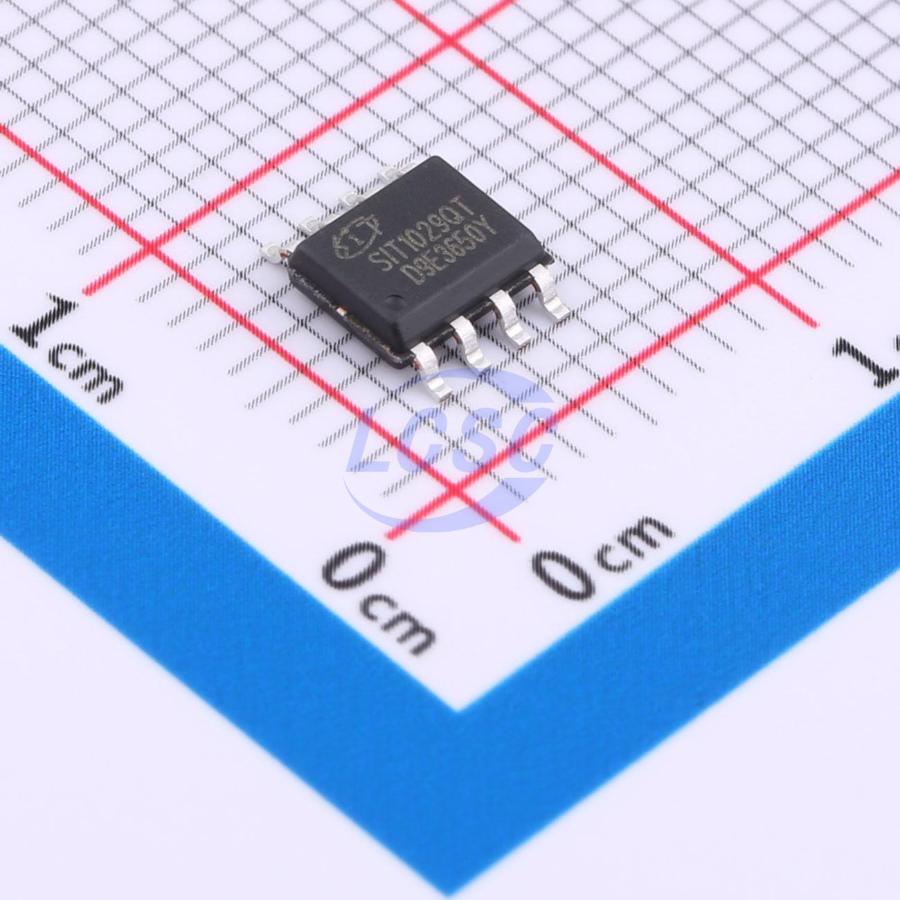

SIT1029QT

SIT1029Q is a local interconnect network (LIN) physical layer transceiver that complies with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, ISO 17987 - 4:2016 (12V) and SAE J2602 standards. It is mainly suitable for in - vehicle networks with a transmission rate of 1kbps to 20kbps. SIT1029Q controls the state of the LIN bus through the TXD pin, and can convert the data stream sent by the protocol controller into a bus signal with the best slew rate and waveform shaping to minimize electromagnetic radiation emission (EME). The LIN bus output pin has an internal pull - up resistor. Only when used as a master node, the LIN bus port needs to be pulled up to V(BAT) through an external resistor in series with a diode. SIT1029Q receives the data stream on the bus through the LIN pin, and transmits the data to the external microcontroller through the receiver's output pin RXD. SIT1029Q can operate from 5.5V to 18V and support 12V applications. SIT1029Q has an extremely low quiescent current consumption in sleep mode and standby mode. It can quickly minimize power consumption in the event of a failure. The device can be placed in normal mode via a signal on the pin SLP_N. SIT1029Q supports integrated TXD dominant timeout detection function.

Key features

• Compliant with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A and SAE J260
• AEC - Q100 qualified
• Compatible with K line
• Integrated over - temperature protection function (thermal shutdown)
• Integrated bus pull - up slave termination resistor
• Bus current limiting protection
• Supply undervoltage protection
• Very low power consumption sleep mode and standby mode
• Support remote wake - up
• Support logic input levels with 3.3V and 5V
• LIN data transmission rate up to 20kbps
• Low ElectroMagnetic Emissions (EME)
• Available in SOP8 and DFN3×3 - 8 packages
