SITDatasheet (PDF)

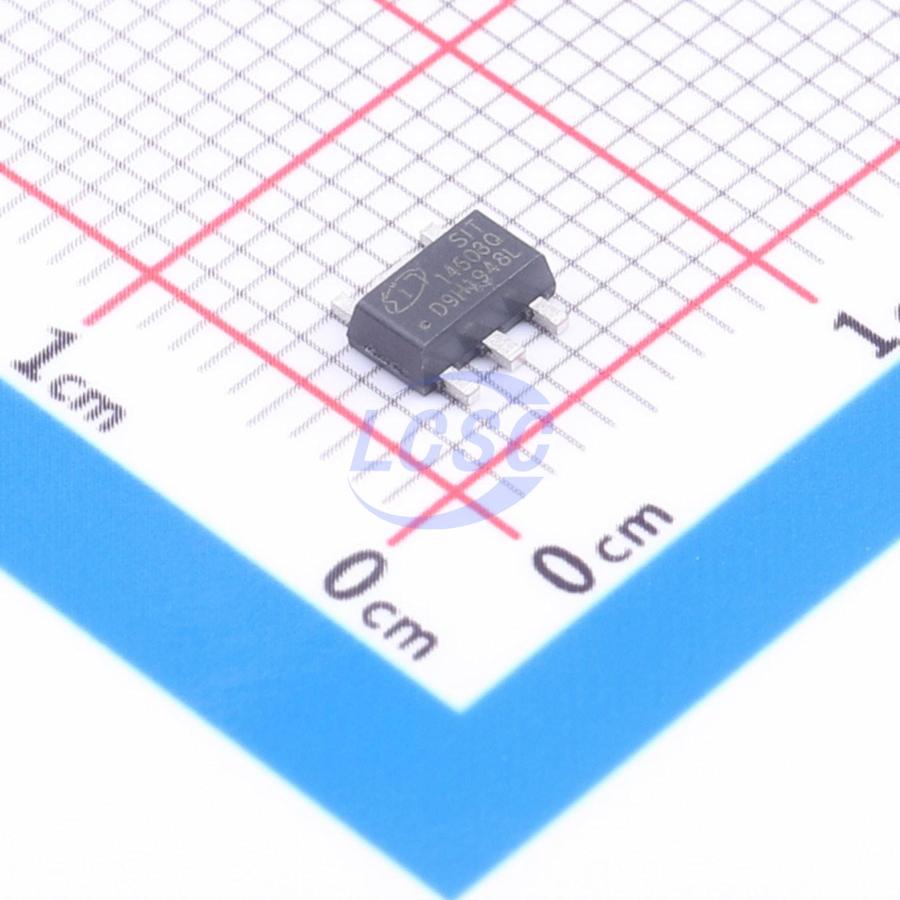

SIT14503QS
5V Positive Fixed SOT-89-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-5RoHSActive
- Manufacturer
- SIT
- Manufacturer part #
- SIT14503QS
- Store part #
- C50346511
- Package / case
- SOT-89-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C50346511
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.77 | ₹98.85 |
| 50+ | ₹19.32 | ₹966.00 |
| 150+ | ₹19.02 | ₹2,853.00 |
| 500+ | ₹18.73 | ₹9,365.00 |
5 × ₹19.77
₹98.85
excl. GST
₹116.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIT14503QS
₹98.85 for 5 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Built-in soft-start
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.152 g
Overview
This series is an ultra-low quiescent current, low-dropout linear regulator with a wide input voltage range of 3V to 40V. Fixed output voltages of 3.3V and 5V are available, along with an adjustable output version ranging from 0.65V to 24V, capable of delivering up to 300mA of load current. In shutdown mode, quiescent current is less than 1µA; under no-load conditions, quiescent current is less than 6µA. The output voltage can be set via an external resistive voltage divider, with a typical feedback voltage of 0.65V. The device integrates overcurrent protection, short-circuit protection, overtemperature shutdown, and auto-restart functionality.
Key features
- Wide input voltage range: 3V to 40V
- AEC-Q100 qualified
- Ultra-low quiescent current < 6µA
- Low dropout: 200mV @ 100mA
- Up to 300mA output current with ultra-low power sleep mode
- Shutdown current < 1µA
- High PSRR 60dB @ 100Hz
- 40V withstand voltage enable pin
- Overcurrent protection, short-circuit protection
- Operating junction temperature range: -40℃ ~ 150℃
- Over-temperature shutdown with auto-restart recovery
- Built-in soft-start
- Available in EMSOP8 and SOT89-5 packages
