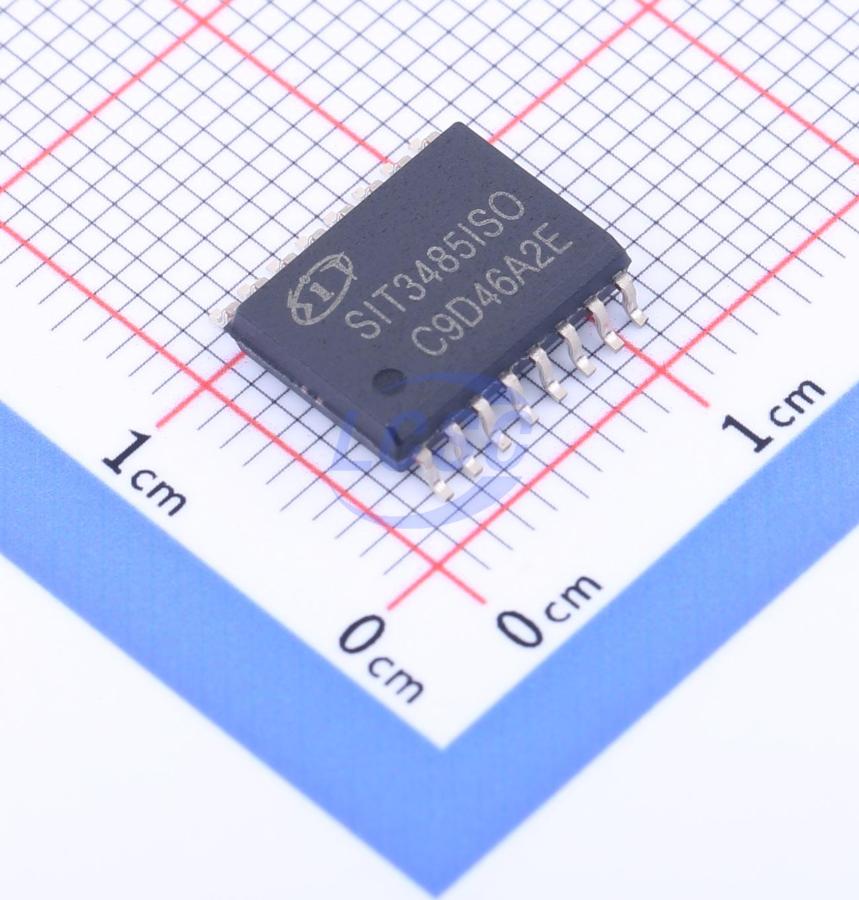

SIT3485ISO

The SIT3485ISO is a capacitively isolated half-duplex RS-485 transceiver with bus port ESD protection exceeding 15kV HBM. It is a fully TIA/EIA-485 compliant RS-485 transceiver. The SIT3485ISO integrates one driver and one receiver, both of which can be independently enabled and disabled. When both are disabled, the driver and receiver outputs enter a high-impedance state. The SIT3485ISO features 1/8 unit load, allowing up to 256 SIT3485ISO transceivers to be connected on the same communication bus. It supports error-free data transmission at up to 500kbps. The SIT3485ISO provides failsafe protection, over-temperature protection, current limiting protection, and overvoltage protection.

Key features

• Compatible with TIA/EIA-485-A standard
• VCC1 supply range: 2.5V~5.5V, VCC2 supply range: 4.5V~5.5V, half-duplex
• Bus port ESD protection exceeding 15kV HBM
• 1/8 unit load, supports up to 256 transceivers on the bus
• Driver short-circuit protection, receiver open-circuit fault protection
• Low-power shutdown function
• Data transfer rate up to 500kbps in electrically noisy environments
• Wide temperature range: -40℃~125℃
• Strong noise immunity
• High common-mode transient immunity (CMTI): ±100kV/µs (typical)
• Isolation voltage up to 5000 VRMS
• Isolation barrier lifetime: >40 years
• Wide-body SOIC16 package, RoHS compliant
