OPSCO Optoelectronics

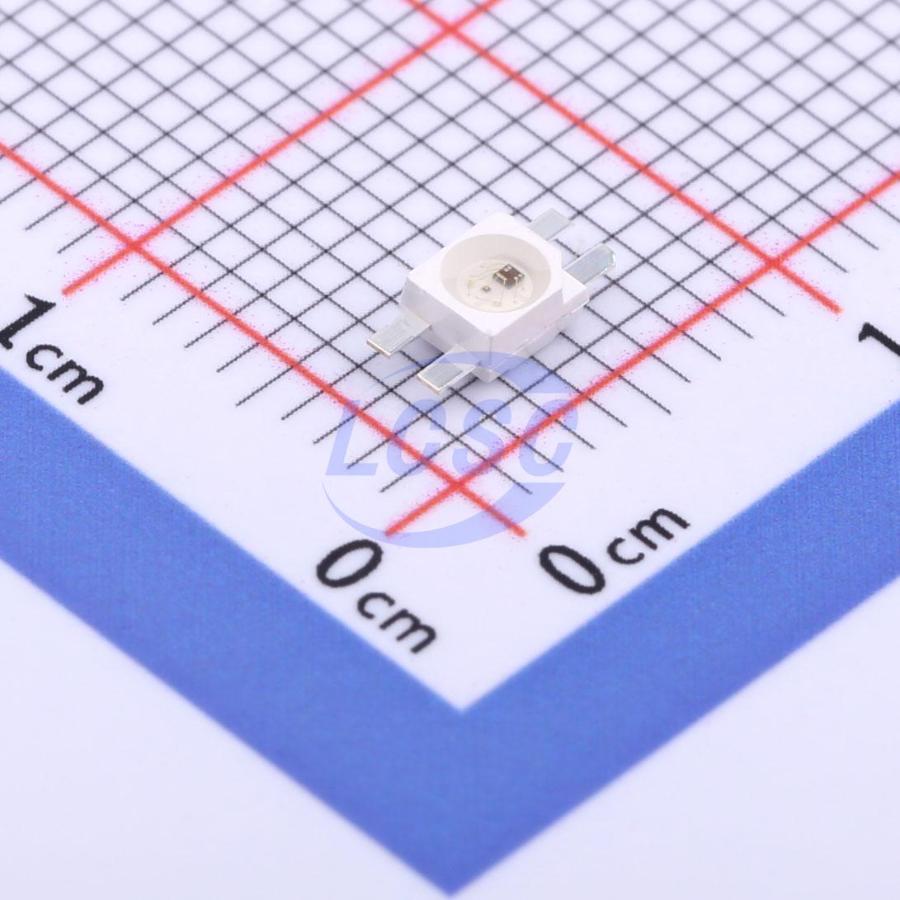

SK6812MINI-E

SMD LED Addressable, Specialty RoHS

PopularSMDROHS CompliantActive

3.2x2.8x1.78 mm, 0.2 W intelligent externally controlled surface-mount device (SMD) LED

Manufacturer: OPSCO Optoelectronics
Manufacturer part #: SK6812MINI-E
Store part #: C5149201
Package / case: SMD
Category: LED Addressable, Specialty
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,67,055 in stock

#C5149201

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹10.72	₹53.60
50+	₹8.61	₹430.50
150+	₹7.53	₹1,129.50
500+	₹6.64	₹3,320.00
2,000+	₹6.22	₹12,440.00
4,000+	₹6.01	₹24,040.00

Quantity (min 5, multiples of 5)

5 × ₹10.72

₹53.60

excl. GST

₹63.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

SK6812MINI-E

₹53.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Luminous Intensity - R: 160mcd~320mcd
Luminous Intensity - G: 815mcd~1275mcd
Luminous Intensity - B: 120mcd~240mcd
Data Transmission Rate: 800Kbit/s
Dominant Wavelength - R: 620nm~625nm
Dominant Wavelength - G: 515nm~525nm
Dominant Wavelength - B: 460nm~470nm
Fixed-Frequency Pwm Mode: 1kHz
Length: 3.2mm
Operating Temperature: -40℃~+85℃
ESD Withstand Voltage: 2000V
Height: 2.8mm
Width: 1.78mm
Lens Color: Semi-transparent lens
Viewing Angle: 120°

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

- Operating voltage: 5V@12mA (OUT GRB) - Application notes for 12mA current version: 1. When lighting single color, 100% grayscale can be used 2. When lighting tri-color, use 70% grayscale - Viewing angle: 120° - Lens color: Semi-transparent - Built-in reset circuit, no light on power-up - Grayscale adjustment: 256 levels - Single-wire return-to-zero transmission protocol, supports unlimited cascading - Data transmission rate up to 800Kbps; when refresh rate is 30 fps, cascade count is less than 1024 pixels - MSL: 5a - ESD: 2KV - RoHS and REACH compliant
