SlkorDatasheet (PDF)

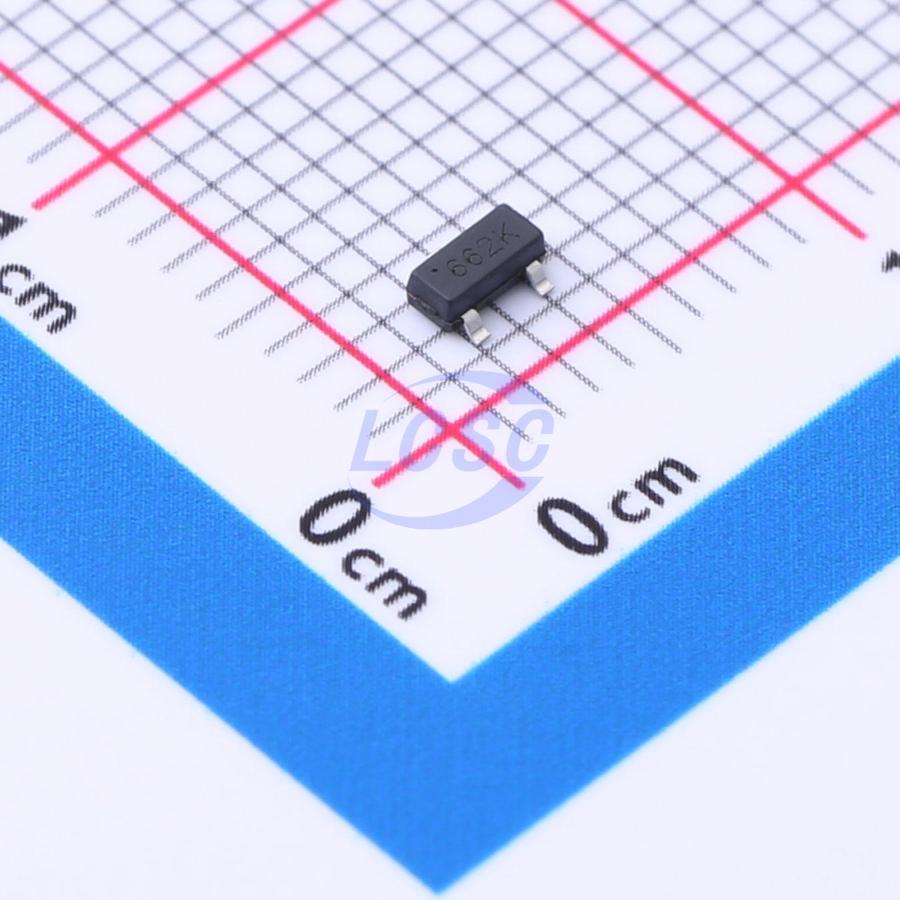

SL6206-33NR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS3 CompliantActive
300mA Ultra-low Noise and Ultra-fast Response LDO Linear Regulator
- Manufacturer
- Slkor
- Manufacturer part #
- SL6206-33NR
- Store part #
- C5185956
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,750 in stock
#C5185956
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.34 | ₹117.00 |
| 500+ | ₹1.87 | ₹935.00 |
| 3,000+ | ₹1.55 | ₹4,650.00 |
| 6,000+ | ₹1.39 | ₹8,340.00 |
| 24,000+ | ₹1.26 | ₹30,240.00 |
| 51,000+ | ₹1.18 | ₹60,180.00 |
50 × ₹2.34
₹117.00
excl. GST
₹138.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL6206-33NR
₹117.00 for 50 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.038 g
Overview
The SL6206 series are CMOS step-down voltage regulators with high ripple rejection, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices feature very low quiescent current (70μA Typ.) and can deliver 300mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are ideal for battery-powered applications requiring extended battery life, such as computers, consumer electronics, and industrial equipment.
Applications
- CDMA/GSM mobile phones
- PDAs/MP3
- WLAN and Bluetooth devices
- Cordless phones
- Battery-powered systems
Key features
- Output range: 1.2V - 3.6V
- 300mA output current
- High PSRR: 70dB at 1kHz
- Ultra-low quiescent current: 70uA (typical)
- Less than 1uA in shutdown mode
- Junction temperature operating range: -40℃ to +85℃
