SlkorDatasheet (PDF)

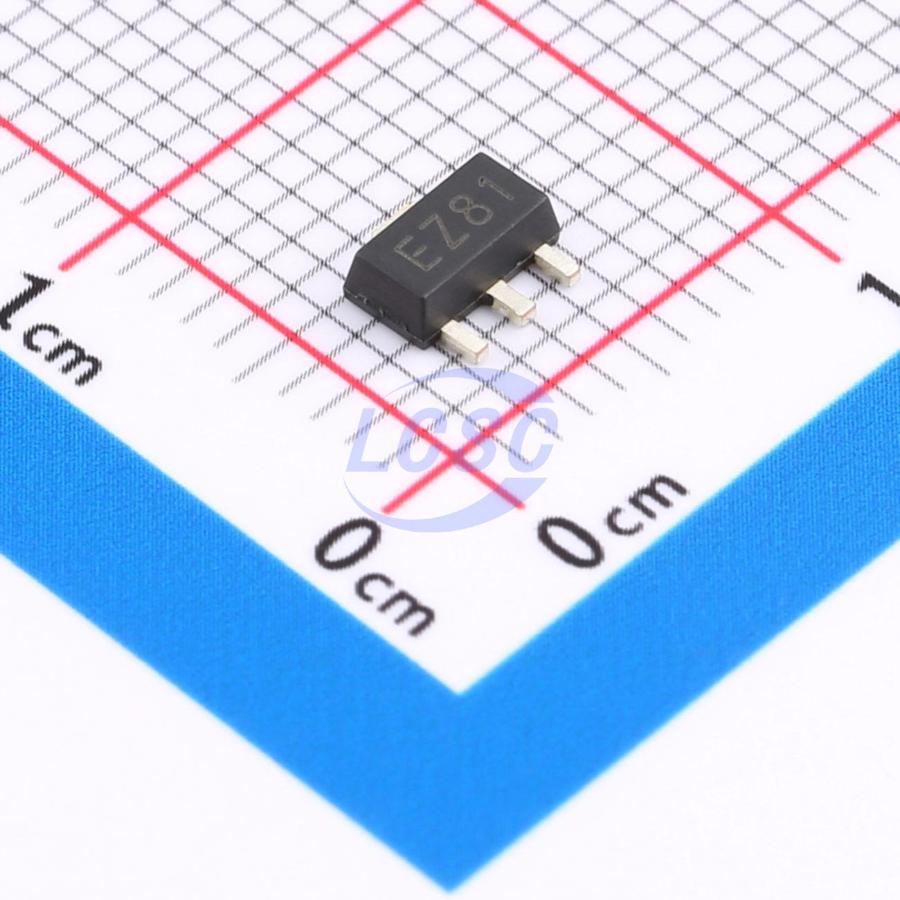

SL7603P50PR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
500mA Low Power LDO
- Manufacturer
- Slkor
- Manufacturer part #
- SL7603P50PR
- Store part #
- C2980856
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
757 in stock
#C2980856
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹25.19 | ₹25.19 |
| 10+ | ₹20.11 | ₹201.10 |
| 30+ | ₹17.94 | ₹538.20 |
| 100+ | ₹15.21 | ₹1,521.00 |
| 500+ | ₹14.01 | ₹7,005.00 |
| 1,000+ | ₹13.28 | ₹13,280.00 |
1 × ₹25.19
₹25.19
excl. GST
₹29.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SL7603P50PR
₹25.19 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 15V
- Output Type
- Fixed
- Features
- Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
The SL7603 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SL7603 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89-3, SOT23-3 and SOT23-5 packages are available.
Applications
- Battery-powered equipment
- GRS Receivers
- Hand-Hold Equipment
- Wireless LAN
Key features
- Low voltage drop: 0.17V@100mA
- Low Quiescent Current: 1.5uA
- High input voltage: 15V
- Output voltage accuracy: tolerance ±2%
- Low temperature coefficient
- Built-in current limiter
- Large Output Current: 0.5A
- SOT89-3, SOT23-3 and SOT23-5 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL1117-5.0S#C33962567Slkor · SOT-89 | Slkor | SOT-89 | 1,080 | ₹5.44 · 1,080 in stock | View |
 | AMS1117-5.0#C880753Slkor · SOT-89-3 | Slkor | SOT-89-3 | 16,310 | ₹6.55 · 16,310 in stock | View |
 | SL51M50SQ#C53207087Slkor · SOT-89 | Slkor | SOT-89 | 50 | ₹19.37 · 50 in stock | View |
