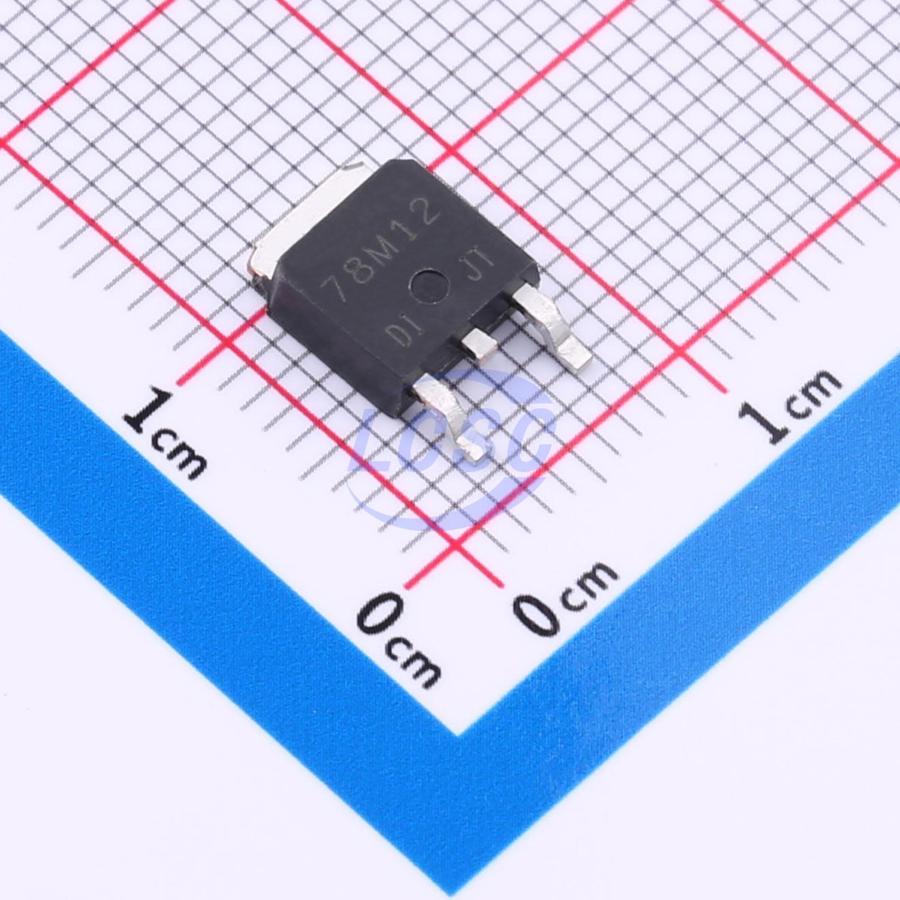

SL78M12
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-3
TO-252-3ROHS3 CompliantActive
Fixed-output linear three-terminal voltage regulator circuit
- Manufacturer
- Slkor
- Manufacturer part #
- SL78M12
- Store part #
- C41428764
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
195 in stock
#C41428764
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.56 | ₹67.80 |
| 50+ | ₹10.72 | ₹536.00 |
| 150+ | ₹9.30 | ₹1,395.00 |
| 500+ | ₹8.23 | ₹4,115.00 |
| 2,500+ | ₹7.33 | ₹18,325.00 |
| 5,000+ | ₹6.89 | ₹34,450.00 |
5 × ₹13.56
₹67.80
excl. GST
₹80.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SL78M12
₹67.80 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.3mA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Features
- Input overvoltage protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.458 g
Overview
SL78MXX is a fixed-output linear three-terminal voltage regulator with a wide input voltage range. It integrates a reference voltage circuit, overvoltage protection, overcurrent protection, and over-temperature protection for reliable operation. The output stage features low output impedance with an output current of up to 1A. The device offers low quiescent current and is available in a TO-252-3 package.
Applications
- Instrumentation
- Motherboard Power
- Multi-rail Power Systems
- Equipment Power Modules
Key features
- Manufactured on 50V process platform
- Fixed output voltage options: 5V, 9V, 12V, 15V
- Wide input voltage range: 7 - 40V input; 50V withstand voltage
- Low quiescent current: typical 2.3mA@10V
- Output voltage redundancy range ±5% across full voltage, full current, and full temperature
- Stable output current up to 1A
- Built-in over-temperature protection, over-voltage protection, and over-current protection
