VBsemi ElecDatasheet (PDF)

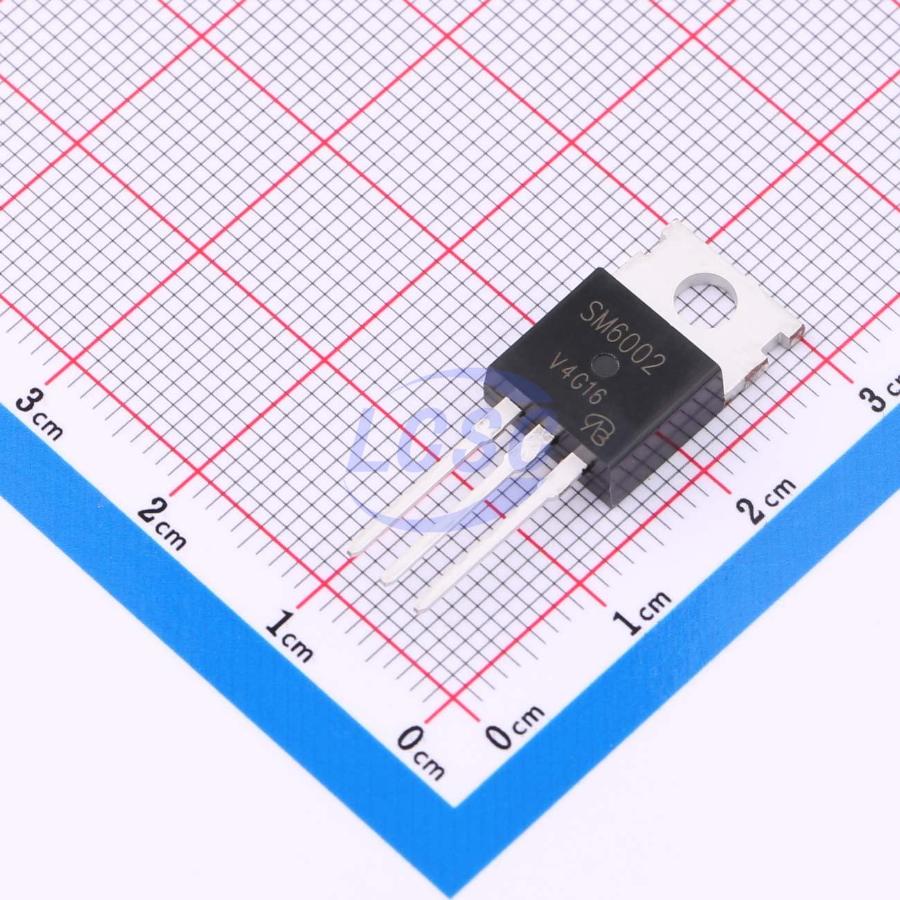

SM6002NAF-VB
N-Channel 60V 120A 136W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 120A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SM6002NAF-VB
- Store part #
- C29779031
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779031
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.96 | ₹136.96 |
| 10+ | ₹110.29 | ₹1,102.90 |
| 50+ | ₹97.06 | ₹4,853.00 |
| 100+ | ₹83.81 | ₹8,381.00 |
| 500+ | ₹75.83 | ₹37,915.00 |
| 1,000+ | ₹71.84 | ₹71,840.00 |
1 × ₹136.96
₹136.96
excl. GST
₹161.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SM6002NAF-VB
₹136.96 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 570pF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 6.8nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
Applications
- Load switch for portable applications
- Battery switch for portable devices
- Computers
- Bus switch
- Load switch
Key features
- 175°C junction temperature
- Trench power MOSFET
- Material classification: RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3353-VB#C20755334VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹142.63 · 10 in stock | View |
 | 2SK4202-VB#C20755335VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹142.63 · 8 in stock | View |
 | HUF75343P3-VB#C22389306VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹136.96 · 10 in stock | View |
 | PSMN005-55P-VB#C22389880VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹136.96 · 10 in stock | View |
 | HUF76443P3-VB#C29778824VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹136.96 · 6 in stock | View |
