VISHAYDatasheet (PDF)

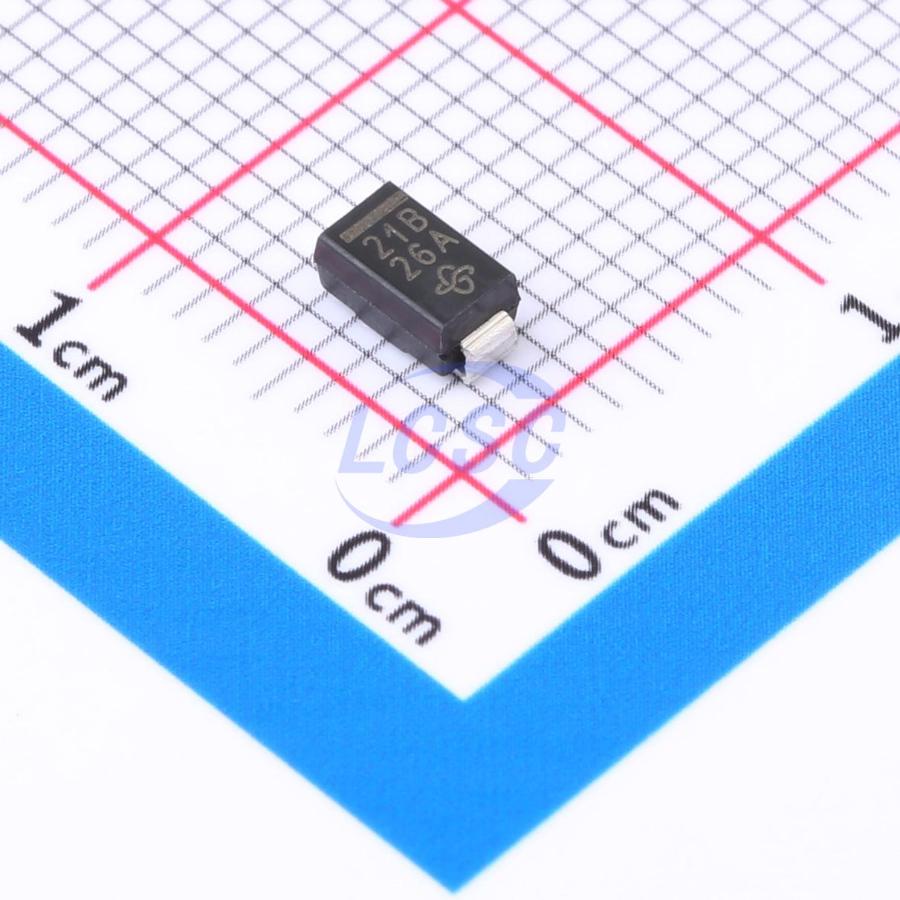

SMAZ5921B-E3/61
Zener Diode Independent 6.8V 500mW DO-214AC
DO-214ACROHS3 CompliantActive
DIODE ZENER 6.8V 500mW DO-214AC
- Manufacturer
- VISHAY
- Manufacturer part #
- SMAZ5921B-E3/61
- Store part #
- C5562454
- Package / case
- DO-214AC
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C5562454
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.79 | ₹93.95 |
| 50+ | ₹15.03 | ₹751.50 |
| 150+ | ₹13.15 | ₹1,972.50 |
| 500+ | ₹11.74 | ₹5,870.00 |
| 1,800+ | ₹10.61 | ₹19,098.00 |
| 5,400+ | ₹10.05 | ₹54,270.00 |
5 × ₹18.79
₹93.95
excl. GST
₹110.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SMAZ5921B-E3/61
₹93.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5.2uA@200V
- Impedance(Zzt)
- 2.5Ω
- Zener Voltage(Range)
- 6.46V~7.14V
- Zener Voltage(Nom)
- 6.8V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
Applications
- For general purpose regulation and protection applications.
Key features
- SMA (DO-214AC)
- Low profile package
- Ideal for automated placement
- Low Zener impedance
- Low regulation factor
- Meets MSL level 1, per J-STD-020, LE maximum peak of 260℃
- Material categorization: for definitions of compliance please see doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAZ5921B#C7466335amsem · DO-214AC(SMA) | amsem | DO-214AC(SMA) | 4,560 | ₹7.45 · 4,560 in stock | View |
 | 1SMA4736A#C22449605GOODWORK · SMA | GOODWORK | SMA | 1,940 | ₹4.41 · 1,940 in stock | View |
 | 1SMA4736A#C5353091FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 4,820 | ₹4.66 · 4,820 in stock | View |
 | TP1SMA5921BT3G#C49274808TECH PUBLIC · SMA | TECH PUBLIC | SMA | 5,390 | ₹9.42 · 5,390 in stock | View |
 | SMAZ6V8-TP#C49274884TECH PUBLIC · SMA | TECH PUBLIC | SMA | 1,000 | ₹8.68 · 1,000 in stock | View |
