JSCJDatasheet (PDF)

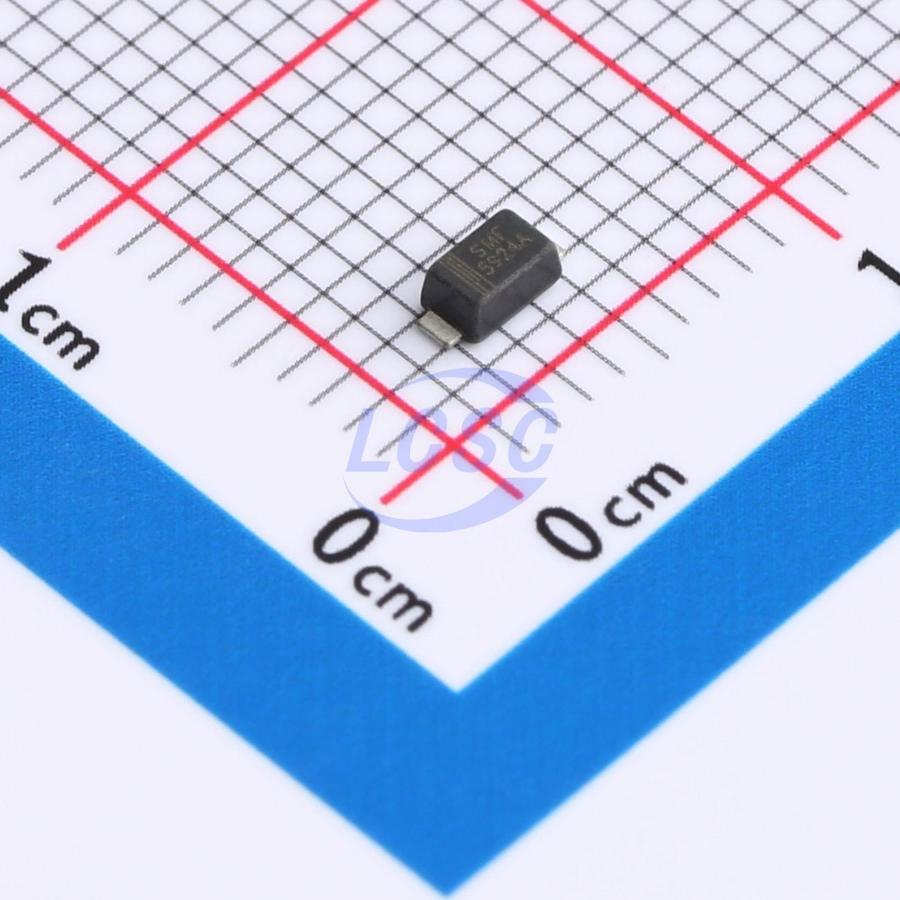

SMF5924A
Zener Diode 9.1V 1.5W Surface Mount SOD-123FL
SOD-123FLROHS CompliantActive
DIODE ZENER 9.1V 1.5W SOD-123FL
- Manufacturer
- JSCJ
- Manufacturer part #
- SMF5924A
- Store part #
- C5293342
- Package / case
- SOD-123FL
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,815 in stock
#C5293342
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.68 | ₹53.40 |
| 50+ | ₹8.33 | ₹416.50 |
| 150+ | ₹7.16 | ₹1,074.00 |
| 500+ | ₹6.27 | ₹3,135.00 |
| 3,000+ | ₹5.57 | ₹16,710.00 |
| 6,000+ | ₹5.23 | ₹31,380.00 |
5 × ₹10.68
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF5924A
₹53.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 1.5W
- Reverse Leakage Current (Ir)
- 2.5uA@7V
- Impedance(Zzt)
- 4Ω
- Zener Voltage(Range)
- 8.63V~9.56V
- Zener Voltage(Nom)
- 9.1V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5239B#C21546JSCJ · SOD-123 | JSCJ | SOD-123 | 15,320 | ₹4.06 · 15,320 in stock | View |
 | BZT52C9V1#C2123JSCJ · SOD-123 | JSCJ | SOD-123 | 4,650 | ₹2.69 · 4,650 in stock | View |
 | MMSZ4696#C93559JSCJ · SOD-123 | JSCJ | SOD-123 | On request | ₹3.84 · 0 in stock | View |
 | BZT52B9V1#C5293086JSCJ · SOD-123 | JSCJ | SOD-123 | 2,960 | ₹3.64 · 2,960 in stock | View |
 | AD-MMSZ5238B#C2975761JSCJ · SOD-123 | JSCJ | SOD-123 | 560 | ₹2.74 · 560 in stock | View |
