ROHMDatasheet (PDF)

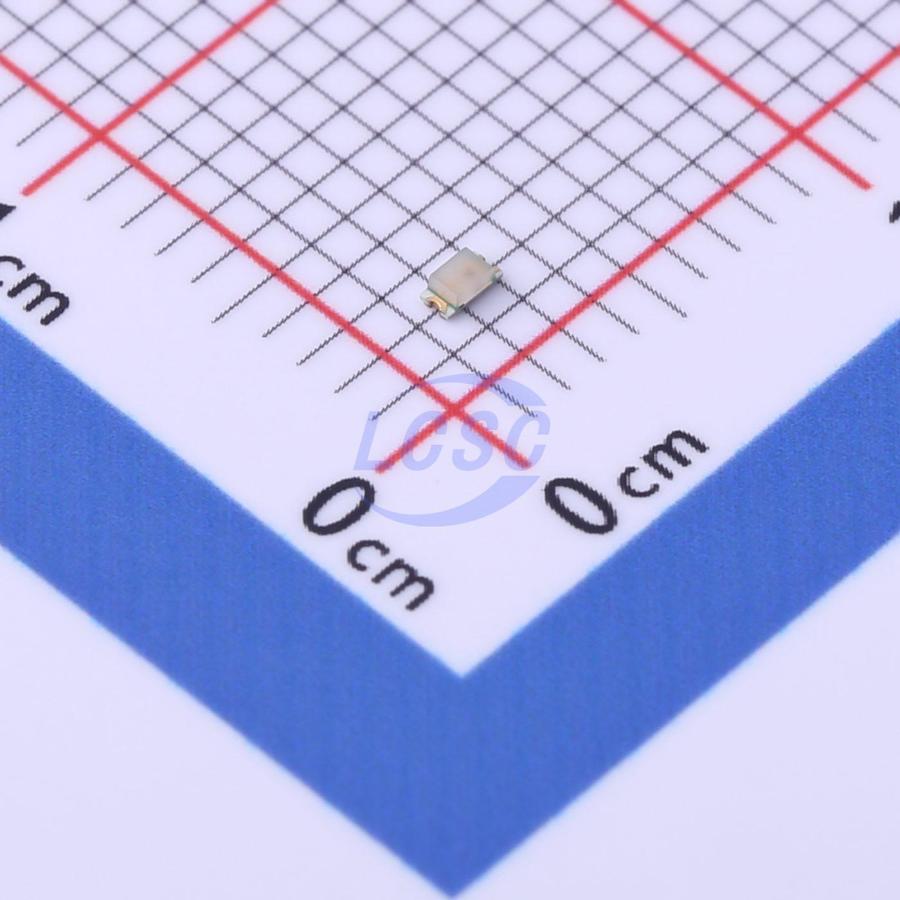

SML-D12Y8WT86
Yellow LED Indication - Discrete 2.2V 0603
0603ROHS3 CompliantActive
LED YELLOW 0603 SMD
- Manufacturer
- ROHM
- Manufacturer part #
- SML-D12Y8WT86
- Store part #
- C2840179
- Package / case
- 0603
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C2840179
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹13.47 | ₹134.70 |
| 100+ | ₹10.99 | ₹1,099.00 |
| 300+ | ₹9.75 | ₹2,925.00 |
| 3,000+ | ₹7.95 | ₹23,850.00 |
| 6,000+ | ₹7.21 | ₹43,260.00 |
| 9,000+ | ₹6.83 | ₹61,470.00 |
10 × ₹13.47
₹134.70
excl. GST
₹158.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SML-D12Y8WT86
₹134.70 for 10 + GST
Specifications
- Installation method
- Top-mount
- Lens Color
- Frosted White Lens
- Luminous Intensity
- 63mcd
- Forward Current
- 20mA
- Illumination Color
- Yellow
- Lamp Holder Type
- 1.2mm x 0.8mm square LED
- Voltage - Forward(Vf)
- 2.2V
- Operating Temperature
- -40℃~+85℃
- Wavelength
- 590nm
- Diode Configuration
- Discrete Diode
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
Key features
- EXCEEDM series Original device technology enables high brightness and high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SML-E12Y8WT86#C510295ROHM · 0603 | ROHM | 0603 | 5 | ₹59.55 · 5 in stock | View |
 | SML-D12Y1WT86#C253534ROHM · 0603 | ROHM | 0603 | 4,780 | ₹31.26 · 4,780 in stock | View |
| SML-D13Y8WT86#C510031ROHM · 0603 | ROHM | 0603 | 2,990 | ₹31.66 · 2,990 in stock | View | |
 | SML-D12Y3WT86#C7012315ROHM · 0603 | ROHM | 0603 | 5 | ₹22.72 · 5 in stock | View |
 | SML-D12Y8WT86C#C5336687ROHM · 0603 | ROHM | 0603 | 90 | ₹49.28 · 90 in stock | View |
