ROHMDatasheet (PDF)

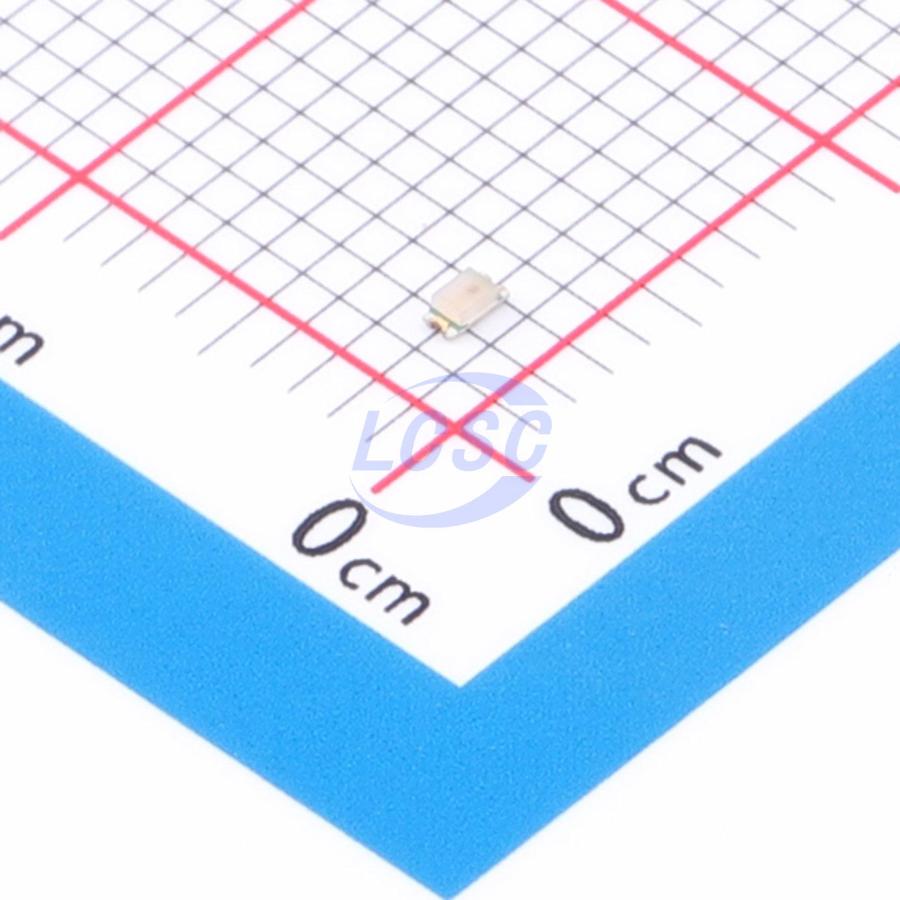

SML-D13MWT86A
20mA 2.1V 160° 28mcd~71mcd Yellow Green 1.2mm x 0.8mm square LED 568nm~574nm 1608(0603) LED Indication - Discrete RoHS
1608(0603)ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- SML-D13MWT86A
- Store part #
- C5755531
- Package / case
- 1608(0603)
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C5755531
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.32 | ₹91.60 |
| 50+ | ₹17.87 | ₹893.50 |
| 150+ | ₹17.57 | ₹2,635.50 |
| 500+ | ₹17.27 | ₹8,635.00 |
5 × ₹18.32
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SML-D13MWT86A
₹91.60 for 5 + GST
Specifications
- Forward Current
- 20mA
- Operating Temperature
- -40℃~+100℃
- Voltage - Forward(Vf)
- 2.1V
- Diode Configuration
- Discrete Diode
- ESD Withstand Voltage
- 4000V
- Installation method
- Top-mount
- Lens Color
- Frosted White Lens
- Viewing Angle
- 160°
- Luminous Intensity
- 28mcd~71mcd
- Illumination Color
- Yellow Green
- Lamp Holder Type
- 1.2mm x 0.8mm square LED
- Wavelength
- 568nm~574nm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
Applications
- Automotive Interior
- Switch Backlighting
- Indicator Lights
- Function Display
Key features
- Dimensions (L×W×H): 1.6×0.8×0.55 (mm)
- Type: Mold type (monochromatic)
- Viewing direction: Top view
- Color: Yellow-green
- Typical luminous intensity at forward current (IF = 20mA): 45.0 (mcd)
- Typical forward voltage at forward current (IF = 20mA): 2.1 (V)
- Typical dominant wavelength at forward current (IF = 20mA): 571 (nm)
- Viewing angle: 2θ1/2 X - Y: 160°, X' - Y': 160°
- MSL level: 3
- AEC-Q: AEC-Q102
