VISHAYDatasheet (PDF)

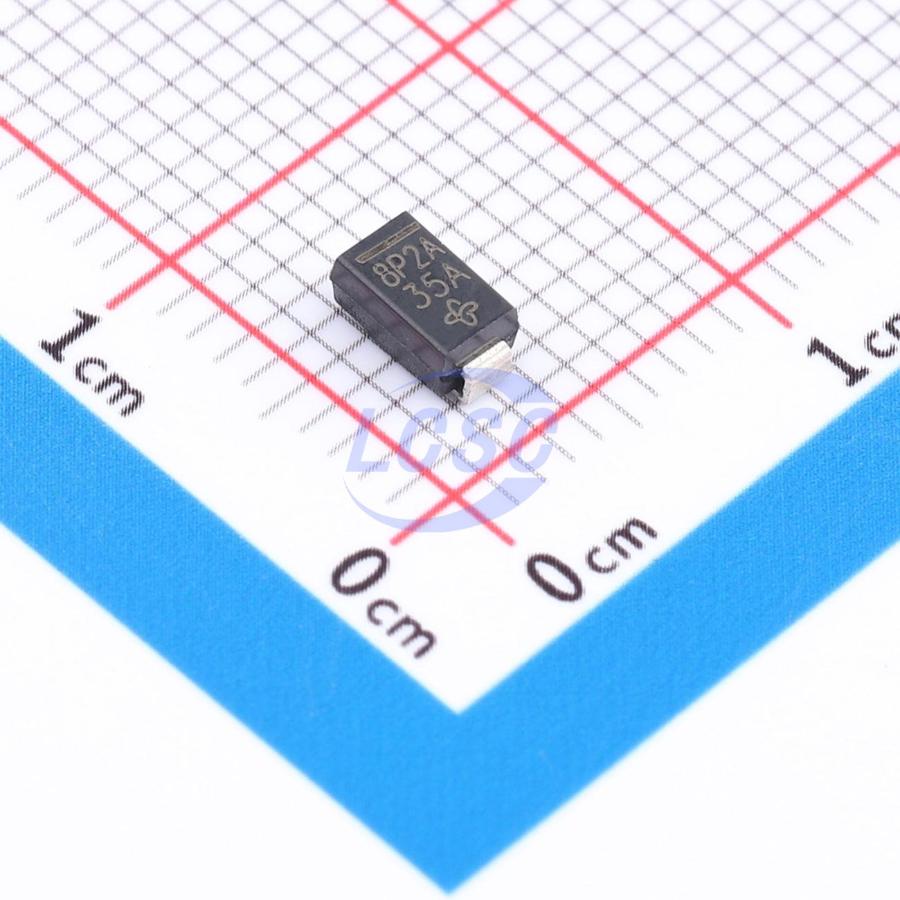

SML4738A-E3/61
1 Independent 8.2V DO-214AC(SMA) Single Zener Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
DIODE ZENER 8.2V 1W DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SML4738A-E3/61
- Store part #
- C3732033
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C3732033
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.27 | ₹126.35 |
| 50+ | ₹19.98 | ₹999.00 |
| 150+ | ₹17.71 | ₹2,656.50 |
| 500+ | ₹14.88 | ₹7,440.00 |
| 1,800+ | ₹13.63 | ₹24,534.00 |
| 5,400+ | ₹12.87 | ₹69,498.00 |
5 × ₹25.27
₹126.35
excl. GST
₹149.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SML4738A-E3/61
₹126.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1W
- Reverse Leakage Current (Ir)
- 10uA@6V
- Impedance(Zzt)
- 4.5Ω
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 700Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.107 g
Overview
Key features
- Plastic package has underwriters laboratory flammability classification 94 V-0
- For surface mounted applications
- Low Zener impedance
- Low regulation factor
- High temperature soldering guaranteed: 260℃ / 10 s at terminals
- Standard voltage tolerance is ±10%, suffix A ±5%
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA4738A#C4154511TWGMC · SMA(DO-214AC) | TWGMC | SMA(DO-214AC) | 3,040 | ₹4.91 · 3,040 in stock | View |
| SMAJ4738A-TP#C7011724MCC · SMA(DO-214AC) | MCC | SMA(DO-214AC) | On request | ₹10.68 · 0 in stock | View | |
