VISHAYDatasheet (PDF)

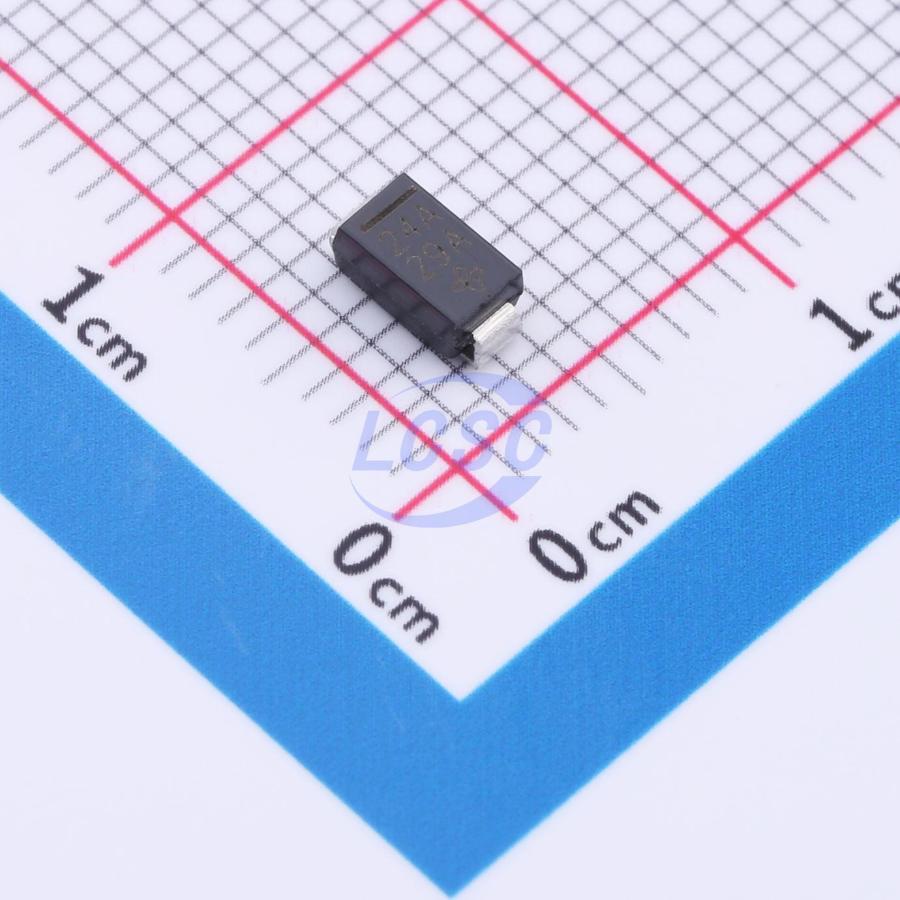

SML4749A-E3/61
Zener Diode Independent 24V 1000mW Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE ZENER 24V 1000mW DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SML4749A-E3/61
- Store part #
- C3741483
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,760 in stock
#C3741483
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.11 | ₹255.55 |
| 50+ | ₹40.43 | ₹2,021.50 |
| 150+ | ₹35.85 | ₹5,377.50 |
| 500+ | ₹30.15 | ₹15,075.00 |
| 1,800+ | ₹27.61 | ₹49,698.00 |
| 5,400+ | ₹26.09 | ₹1,40,886.00 |
5 × ₹51.11
₹255.55
excl. GST
₹301.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SML4749A-E3/61
₹255.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1W
- Reverse Leakage Current (Ir)
- 5uA@18.2V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 750Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
Key features
- Plastic package has underwriters laboratory flammability classification 94 V-0
- For surface mounted applications
- Low Zener impedance
- Low regulation factor
- High temperature soldering guaranteed: 260℃ / 10 s at terminals
- Standard voltage tolerance is ±10%, suffix A ±5%
- AEC-Q101 qualified
