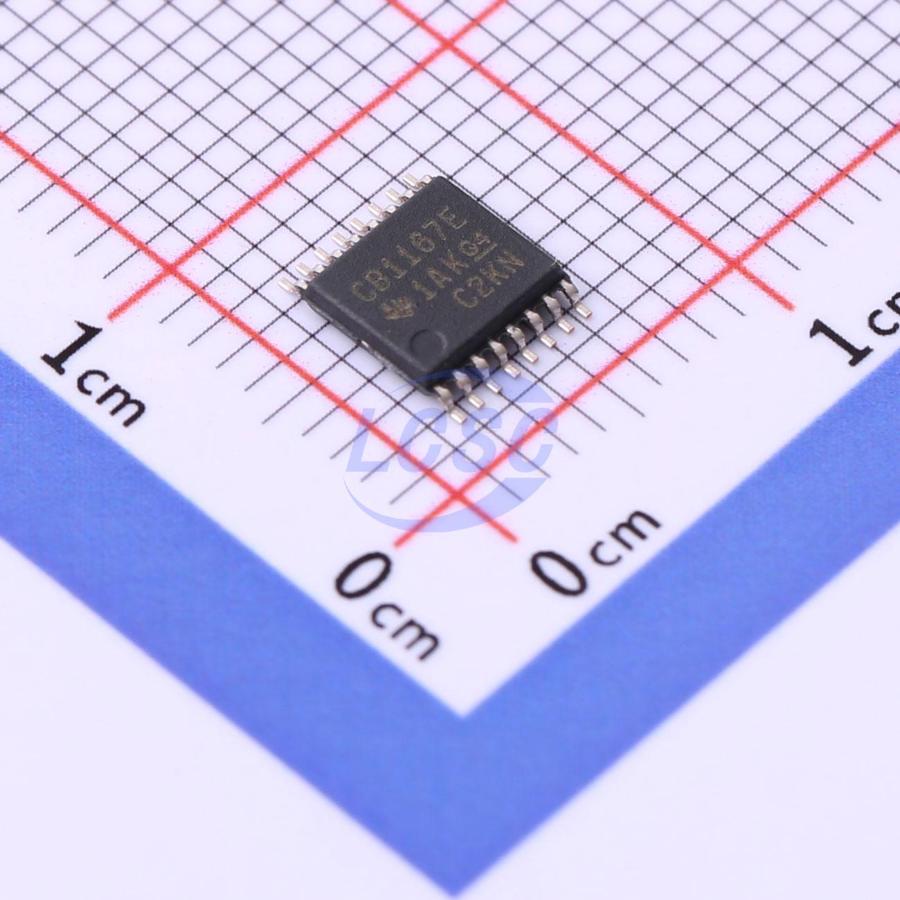

SN65C1167EPWR

The SN65C1167E and SN65C1168E consist of dual drivers and dual receivers with ±15kV ESD (Human Body Model [HBM]) and 8kV ESD (IEC61000-4-2 air-gap discharge and contact discharge) protection on the RS-422 bus pins. These devices comply with TIA/EIA-422-B and ITU Recommendation V.11. The SN65C1167E integrates dual three-state differential line drivers and three-state differential line receivers, both operating from a single 5V supply. The drivers and receivers feature active-high and active-low enable inputs, respectively, which can be externally connected together for direction control. The SN65C1168E drivers feature individual active-high enable inputs.

Applications

• AC and servo motor drives
• Factory automation and control
• Wireless infrastructure

Key features

• Meets or exceeds TIA/EIA-422-B and ITU Recommendation V.11 standards
• Single 5V supply operation
• ESD protection on RS-422 bus pins
• ±15kV HBM
• ±8kV IEC61000-4-2, contact discharge
• ±8kV IEC61000-4-2, air-gap discharge
• Low supply current: 9mA (maximum)
• Low pulse skew
• Receiver input impedance: 17kΩ (typical)
• Receiver input sensitivity: ±200mV
• Receiver common-mode input voltage range: −7V to +7V
• Glitch-free power-up and power-down protection
• Receiver three-state output, active-low enable (SN65C1167E only)
