TIDatasheet (PDF)

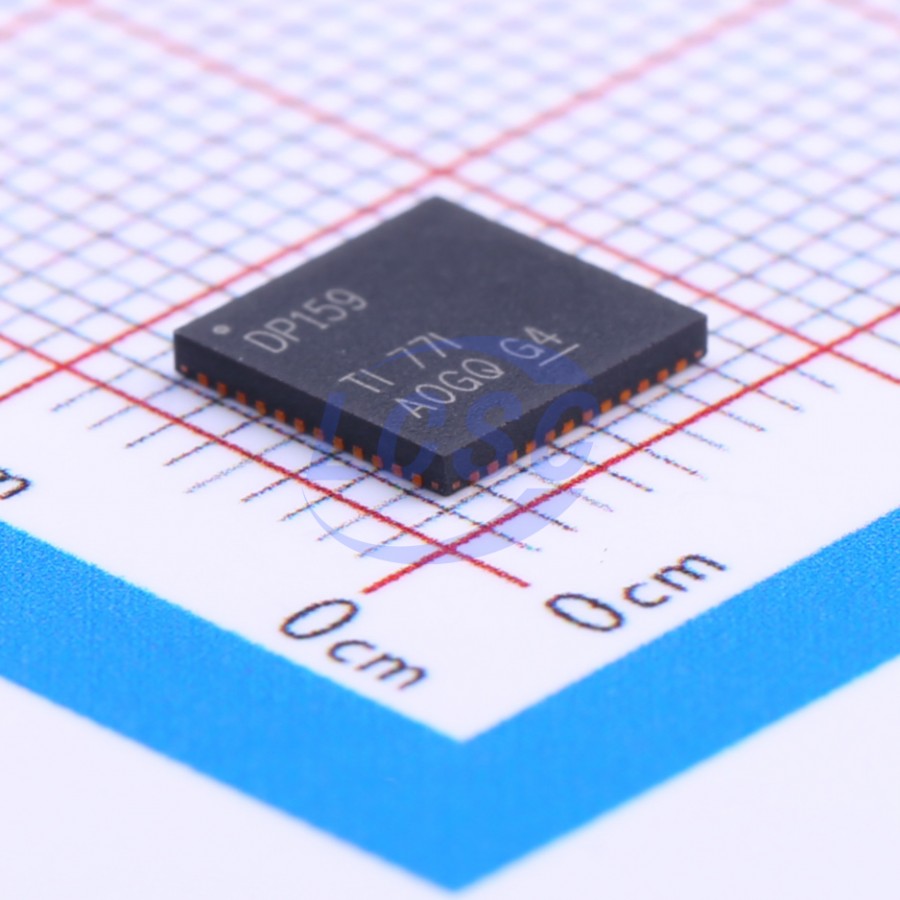

SN65DP159RGZR
250Mbps~6Gbps 3V~3.6V 3 Retimer VQFN-48-EP(7x7) Video Processing RoHS
VQFN-48-EP(7x7)ROHS3 CompliantActive
SNx5DP159 6-Gbps AC-Coupled TMDS to HDMI Level Shifter Retimer
- Manufacturer
- TI
- Manufacturer part #
- SN65DP159RGZR
- Store part #
- C179676
- Package / case
- VQFN-48-EP(7x7)
- Category
- Video Processing
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,331 in stock
#C179676
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹802.70 | ₹802.70 |
| 10+ | ₹682.54 | ₹6,825.40 |
| 30+ | ₹609.08 | ₹18,272.40 |
| 100+ | ₹547.81 | ₹54,781.00 |
1 × ₹802.70
₹802.70
excl. GST
₹947.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65DP159RGZR
₹802.70 for 1 + GST
Specifications
- Data Rate
- 250Mbps~6Gbps
- Voltage - Supply
- 3V~3.6V
- Features
- Integrated equalizer
- Number of Channels
- 3
- Pd - Power Dissipation
- 600mW
- Operating Temperature
- -40℃~+85℃
- Type
- Retimer
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
Applications
- Laptop, desktop, all-in-one, tablet, gaming, and industrial PC audio/video equipment
- Blu-ray DVD gaming systems
- HDMI adapters or dongles, docking stations
Key features
- AC-coupled TMDS or DisplayPort dual-mode PHY input to HDMI2.0a TMDS PHY output, data rate up to 6 Gbps, compliant with HDMI2.0a electrical specifications
- DisplayPort dual-mode standard version 1.1 support
- Adaptive receive equalizer and programmable fixed equalizer, up to 16.5 dB
- High-speed lane control, pre-emphasis, transmit swing, and slew rate control
- I2C or pin-configurable programmable
- Type-2 I2C-over-AUX to DDC bridge support
- Integrated TMDS level shifter and CDR
- Active I2C buffer
- Main channel input swapping
- Low power – 435 mW operating power at 6 Gbps, -10 mW in shutdown state
- Extended commercial temperature and industrial temperature options available
- 40-pin, 0.4 mm pitch, 5 mm x 5 mm WQFN package, pin-compatible with TPD158 redriver
- 40-pin, 0.5 mm pitch, 7 mm x 7 mm VQFN package
