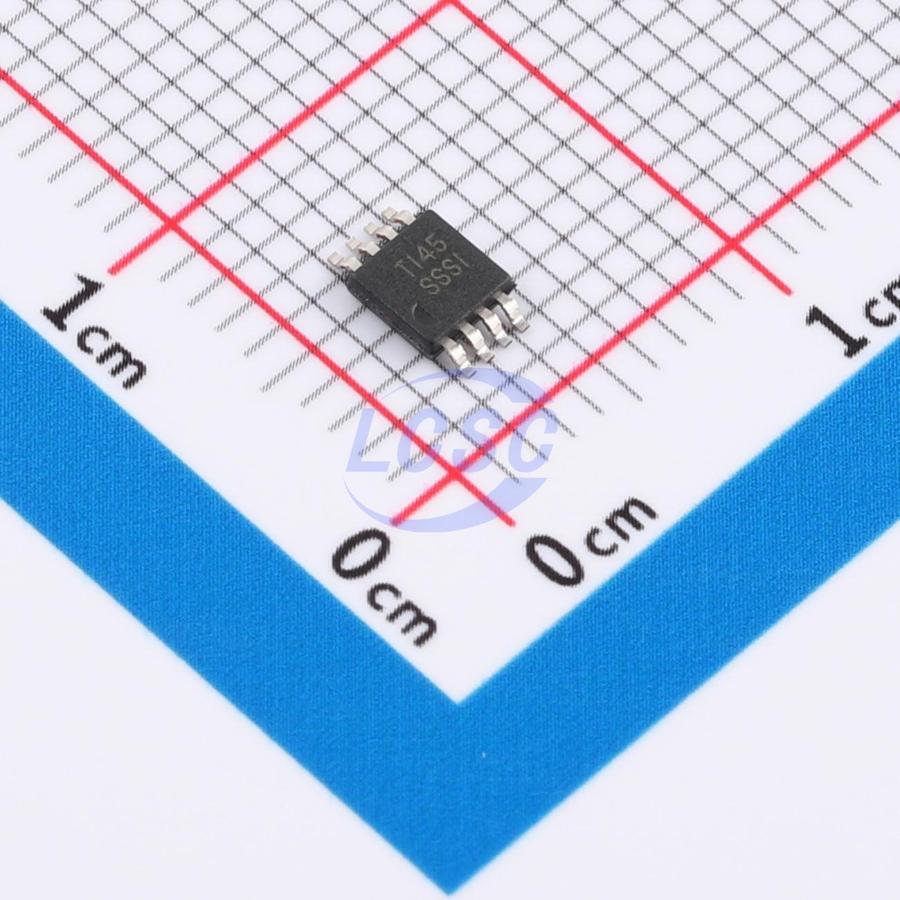

SN65EPT21DGKR

300Mbps 1 1 VSSOP-8-0.65mm Translators, Level Shifters RoHS

VSSOP-8-0.65mmROHS3 CompliantActive

3.3-V Differential PECL/LVDS to TTL Translator

Manufacturer: TI
Manufacturer part #: SN65EPT21DGKR
Store part #: C2677505
Package / case: VSSOP-8-0.65mm
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,193 in stock

#C2677505

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹572.74	₹572.74
10+	₹487.45	₹4,874.50
30+	₹436.44	₹13,093.20
100+	₹385.23	₹38,523.00
500+	₹361.56	₹1,80,780.00
1,000+	₹350.71	₹3,50,710.00

Quantity (min 1)

1 × ₹572.74

₹572.74

excl. GST

₹675.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN65EPT21DGKR

₹572.74 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Signal: TTL
Operating Temperature: -40℃~+85℃
Input Signal: LVDS;PECL
Data Rate: 300Mbps
Number of Elements: 1
Channel Type: Unidirectional
Features: Integrated pull-up resistor
Voltage - Supply: 3V~3.6V;3V~3.6V
Number of Circuits: 1
Current - Output High(IOH): 3mA
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

The SN65EPT21 is a differential PECL-to-TTL translator. It operates on +3.3V supply and ground only. The device includes circuitry to maintain inputs at Vcc/2 when left open. The VBB pin is a reference voltage output for the device. When the device is used in single-ended mode, the unused input should be tied to VBB. This reference voltage can also be used to bias the input when it is ac coupled. When it is used, place a 0.01μF decoupling capacitor between VCC and VBB. Also limit the sink/source current to < 0.5mA to VBB. Leave VBB open when it is not used. The SN65EPT21 is housed in an industry standard SOIC-8 package and is also available in an optional TSSOP-8 package.
