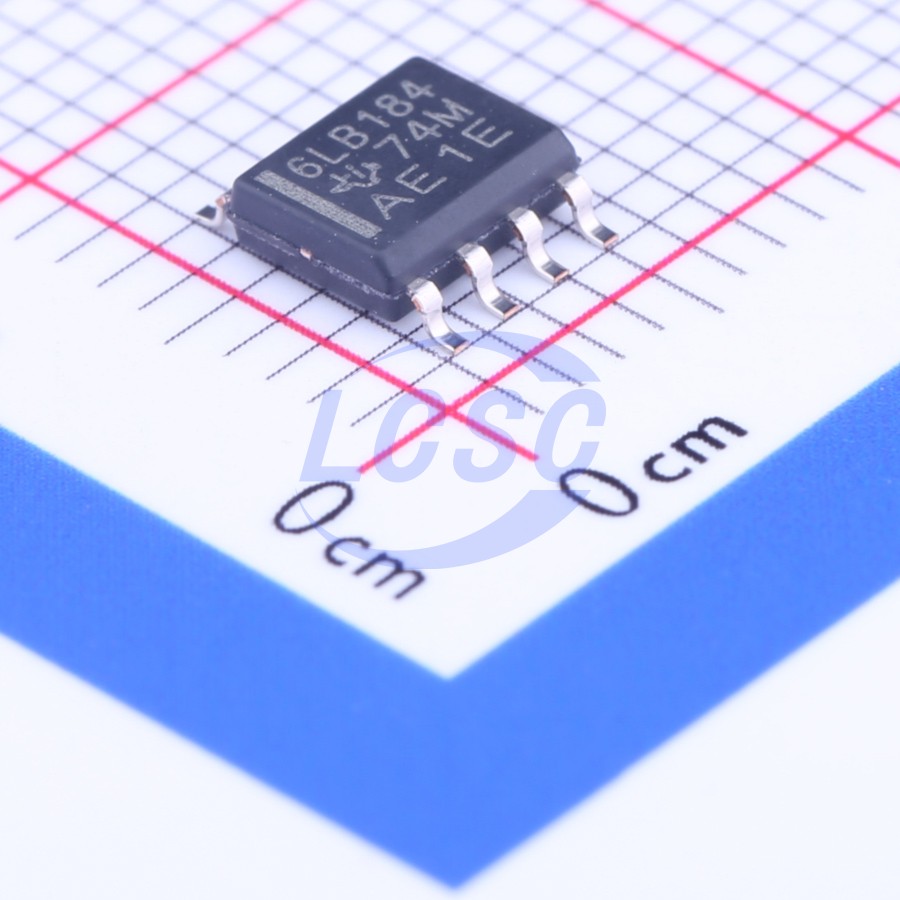

SN65LBC184DR

The SN75LBC184 and SN65LBC184 are differential data line transceivers in the trade - standard footprint of the SN75176 with built - in protection against high - energy noise transients. This feature provides a substantial increase in reliability for better immunity to noise transients coupled to the data cable over most existing devices. Use of these circuits provides a reliable low - cost direct - coupled (with no isolation transformer) data line interface without requiring any external components. The SN75LBC184 and SN65LBC184 can withstand overvoltage transients of 400 - W peak (typical). The conventional combination wave called out in IEC 61000 - 4 - 5 simulates the overvoltage transient and models a unidirectional surge caused by overvoltages from switching and secondary lightning transients. A biexponential function defined by separate rise and fall times for voltage and current simulates the combination wave. The device also includes additional desirable features for party - line data buses in electrically noisy environment applications including industrial process control. The differential - driver design incorporates slew - rate - controlled outputs sufficient to transmit data up to 250 kbps. Slew - rate control allows longer unterminated cable runs and longer stub lengths from the main backbone than possible with uncontrolled and faster voltage transitions. A unique receiver design provides a fail - safe output of a high level when the inputs are left floating (open circuit). The SN75LBC184 and SN65LBC184 receiver also includes a high input resistance equivalent to one - fourth unit load allowing connection of up to 128 similar devices on the bus. The SN75LBC184 is characterized for operation from 0°C to 70°C. The SN65LBC184 is characterized from - 40°C to 85°C

Applications

• Industrial Networks
• Utility Meters
• Motor Control

Key features

• Integrated Transient Voltage Suppression
• ESD Protection for Bus Terminals Exceeds: ±30 kV IEC 61000 - 4 - 2, Contact Discharge; ±15 kV IEC 61000 - 4 - 2, Air - Gap Discharge; ±15 kV EIA/JEDEC Human Body Model
• Circuit Damage Protection of 400 - W Peak (Typical) Per IEC 61000 - 4 - 5
• Controlled Driver Output - Voltage Slew Rates Allow Longer Cable Stub Lengths
• 250 - kbps in Electrically Noisy Environments
• Open - Circuit Fail - Safe Receiver Design
• 1/4 Unit Load Allows for 128 Devices Connected on Bus
• Thermal Shutdown Protection
• Power - Up/-Down Glitch Protection
• Each Transceiver Meets or Exceeds the Requirements of TlA/EIA - 485 (RS - 485) and ISO/IEC 8482:1993(E) Standards
• Low Disabled Supply Current 300 μA Max
• Pin Compatible With SN75176
