TIDatasheet (PDF)

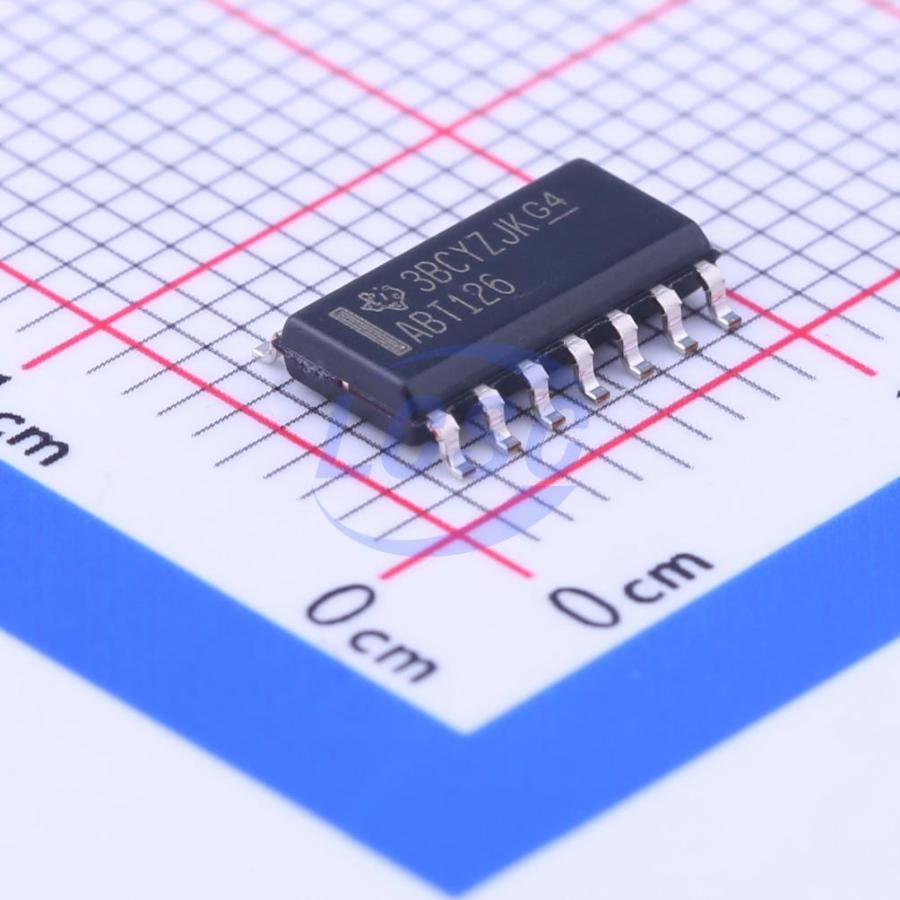

SN74ABT126DR
4.5V~5.5V 1 4 SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74ABT126DR
- Store part #
- C205935
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,630 in stock
#C205935
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.71 | ₹83.71 |
| 10+ | ₹70.66 | ₹706.60 |
| 30+ | ₹61.53 | ₹1,845.90 |
| 100+ | ₹54.14 | ₹5,414.00 |
| 500+ | ₹51.76 | ₹25,880.00 |
| 1,000+ | ₹50.45 | ₹50,450.00 |
1 × ₹83.71
₹83.71
excl. GST
₹98.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74ABT126DR
₹83.71 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 250uA
- Function
- Power-off isolation;Output enable;Hot-swap support
- Current - Output High(IOH)
- 32mA
- Series
- 74ABT
- Current - Output Low(IOL)
- 64mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The ’ABT126 bus buffer gates feature independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is low. When VCC is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
Key features
- Typical V0LP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25 ℃
- High-Impedance State During Power Up and Power Down
- High-Drive Outputs (−32-mA IOH, 64-mA IOL)
- Ioff and Power-Up 3-State Support Hot Insertion
- Latch-Up Performance Exceeds 500 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
