TIDatasheet (PDF)

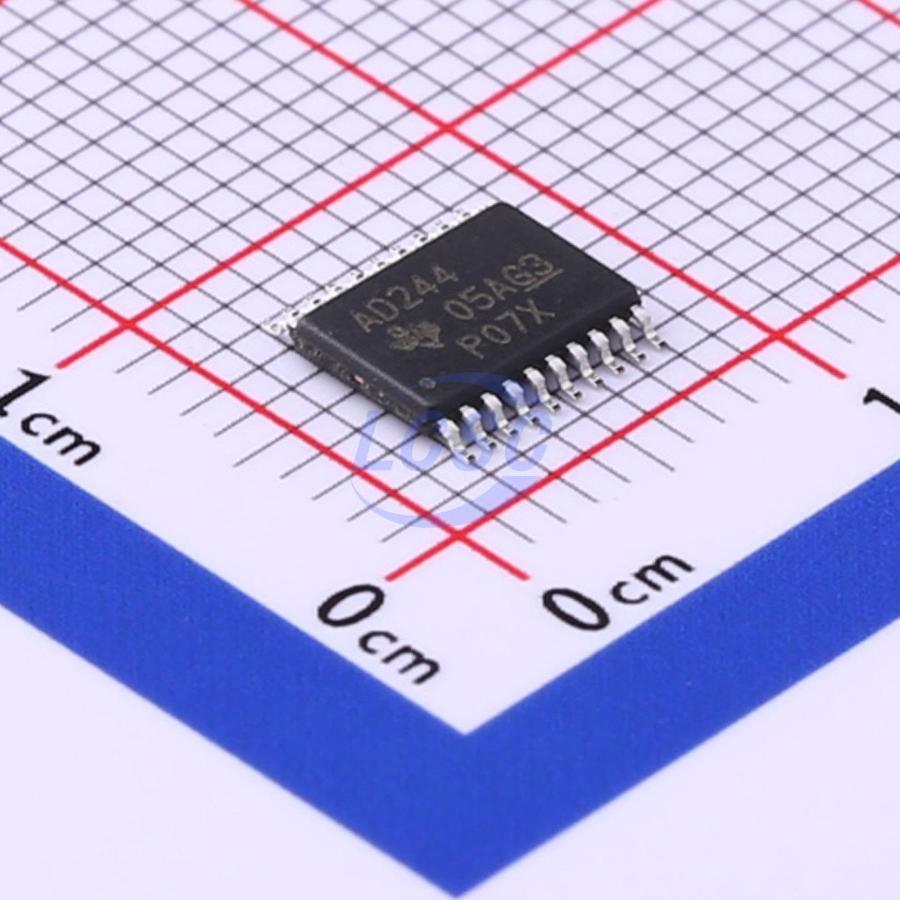

SN74ACT244PWR
4.5V~5.5V 4 2 9.5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74ACT244PWR
- Store part #
- C6930
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70,950 in stock
#C6930
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.46 | ₹152.30 |
| 50+ | ₹23.96 | ₹1,198.00 |
| 150+ | ₹21.18 | ₹3,177.00 |
| 500+ | ₹17.70 | ₹8,850.00 |
| 2,000+ | ₹16.17 | ₹32,340.00 |
| 4,000+ | ₹15.23 | ₹60,920.00 |
5 × ₹30.46
₹152.30
excl. GST
₹179.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74ACT244PWR
₹152.30 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74ACT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 9.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
These octal buffers/drivers are designed specifically to improve the performance and density of 3- state memory address drivers, clock drivers, and bus- oriented receivers and transmitters. The 'ACT244 devices are organized as two 4- bit buffers/drivers with separate output- enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high- impedance state. To ensure the high- impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current- sinking capability of the driver.
Applications
- Three-state memory address driver
- Clock driver
- Bus-oriented receiver
- Bus-oriented transmitter
Key features
- 4.5 - V to 5.5 - V Vcc Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 9.5 ns at 5 V
- Inputs Are TTL Compatible
