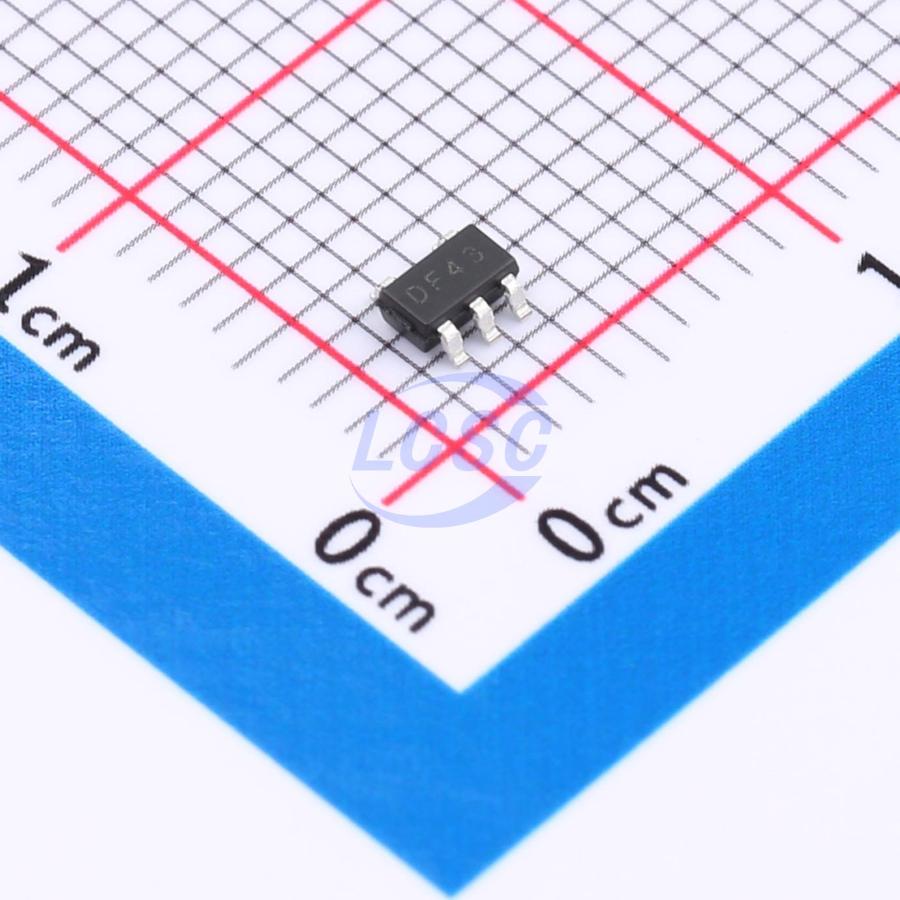

SN74AHC1G125DB(LX)
Buffer Driver 1 Element 1 Bit per Element Tri-State Output SOT-23-5
SOT-23-5RoHSActive
Single-channel buffer/line driver with three-state control
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74AHC1G125DB(LX)
- Store part #
- C45384870
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C45384870
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.28 | ₹72.80 |
| 100+ | ₹5.76 | ₹576.00 |
| 300+ | ₹4.99 | ₹1,497.00 |
| 3,000+ | ₹4.42 | ₹13,260.00 |
| 6,000+ | ₹3.97 | ₹23,820.00 |
| 9,000+ | ₹3.73 | ₹33,570.00 |
10 × ₹7.28
₹72.80
excl. GST
₹85.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G125DB(LX)
₹72.80 for 10 + GST
Specifications
- Function
- Output enable
- Input type
- StandardCMOS
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Current - Output Low(IOL)
- 8mA
- Output Type
- Tri-State
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 4.8ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.057 g
Overview
SN74AHC1G125 and SN74AHCT1G125 are non-inverting buffer/line drivers with 3-state outputs. The output enable input (OE) controls the 3-state outputs. A high level on OE forces the outputs into a high-impedance state. The SN74AHC1G125 is compatible with CMOS input switching levels, with a supply voltage range of 2V~5.5V. The SN74AHCT1G125 is compatible with TTL input switching levels, with a supply voltage range of 4.5V~5.5V.
Key features
- Symmetrical output impedance
- Low power consumption with balanced propagation delay
- Operating temperature range: -40°C~+125°C
- Package: SOT23-5/SOT353
