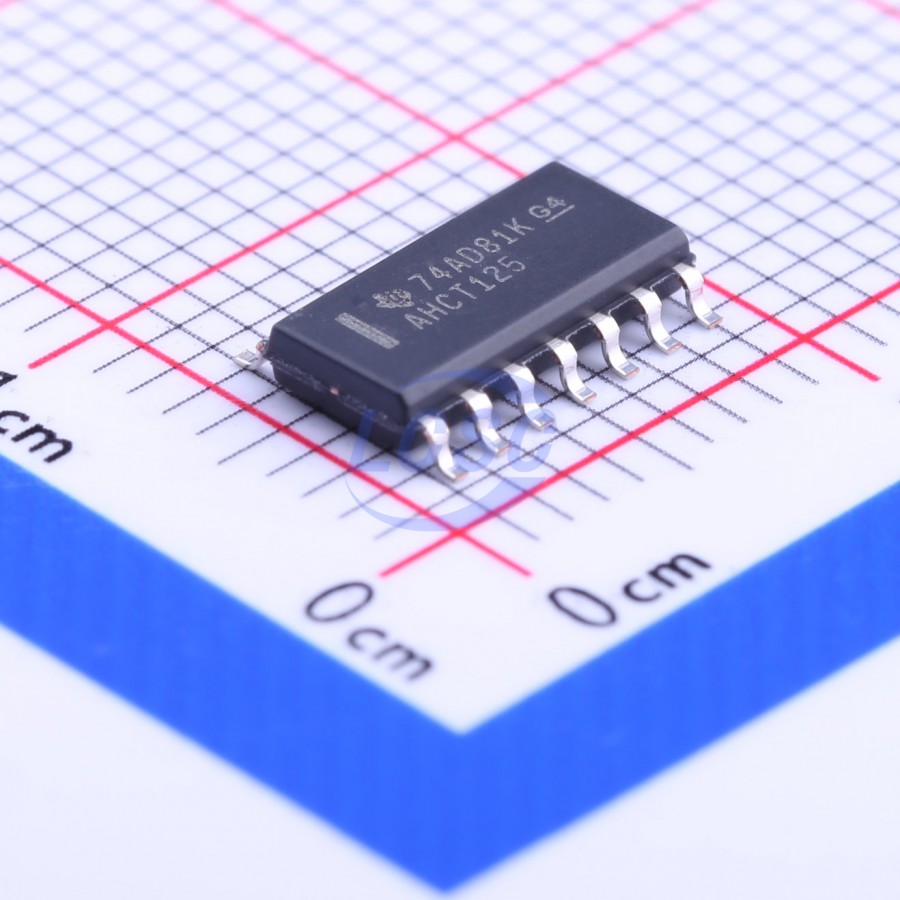

SN74AHCT125DR

The 'AHCT125 devices are quadruple bus buffer gates featuring independent line drivers with 3- state outputs. Each output is disabled when the associated output- enable (OE) input is high. When OE is low, the respective gate passes the data from the A input to its Y output. To ensure the high- impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current- sinking capability of the driver.

Key features

• TTL-compatible input voltage
• Latch-up performance exceeds 250mA, compliant with JESD 17
• ESD protection compliant with JESD 22: HBM up to 2000V, MM up to 200V, CDM up to 1000V
• Maximum ratings (over operating free-air temperature range): supply voltage range -0.5V~7V, input voltage range -0.5V~7V, output voltage range -0.5V~VCC+0.5V, output clamp current ±20mA, continuous output current ±25mA, continuous current through VCC or GND ±50mA; storage temperature range -65℃~150℃
• Thermal resistance parameters by package: D package 86℃/W, DB package 96℃/W, DGV package 127℃/W, N package 80℃/W, NS package 76℃/W, PW package 113℃/W, RGY package 47℃/W
• All unused inputs must be connected to VCC or GND to ensure proper device operation
• Switching characteristics test conditions: VCC=5V±0.5V, within recommended operating temperature range
• Noise characteristics test conditions: VCC=5V, CL=50pF, TA=25℃, applicable to surface-mount packages only
• Operating characteristics test conditions: VCC=5V, TA=25℃
