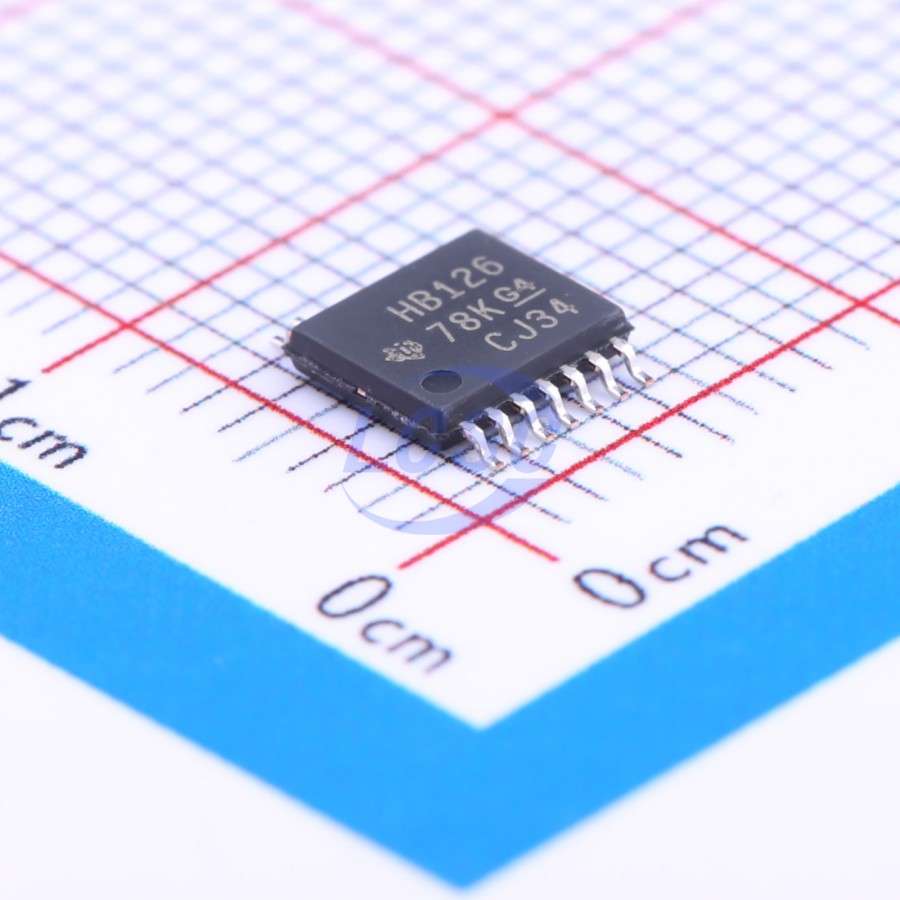

SN74AHCT126PWR
4.5V~5.5V 1 4 5.5ns@5V,15pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple Bus Buffer Gates With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT126PWR
- Store part #
- C155177
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C155177
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹68.77 | ₹343.85 |
| 50+ | ₹53.28 | ₹2,664.00 |
| 150+ | ₹46.64 | ₹6,996.00 |
| 500+ | ₹38.37 | ₹19,185.00 |
| 2,000+ | ₹34.68 | ₹69,360.00 |
| 4,000+ | ₹32.47 | ₹1,29,880.00 |
5 × ₹68.77
₹343.85
excl. GST
₹405.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT126PWR
₹343.85 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Output enable;Level shifting;Edge rate controllable
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 5.5ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The SNxAHCT126 devices are quadruple-bus buffer gates featuring independent line drivers with 3-state outputs.
Applications
- Servers
- PCs and Notebooks
- Network Switches
- Wearable Health and Fitness Devices
- Telecom Infrastructures Electronic Points of Sale
Key features
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAHCT126QPWRG4Q1#C1879777TI · TSSOP-14 | TI | TSSOP-14 | 100 | ₹91.54 · 100 in stock | View |
 | 74AHCT125T14-13#C176917DIODES · TSSOP-14 | DIODES | TSSOP-14 | On request | ₹49.76 · 0 in stock | View |
 | 74AHCT126T14-13#C842310DIODES · TSSOP-14 | DIODES | TSSOP-14 | 75 | ₹29.66 · 75 in stock | View |
| SN74AHCT126QPWRQ1#C2675614TI · TSSOP-14 | TI | TSSOP-14 | 117 | ₹52.95 · 117 in stock | View | |
 | SN74AHCT125QPWRQ1#C507215TI · TSSOP-14 | TI | TSSOP-14 | 4 | ₹121.04 · 4 in stock | View |
