TI

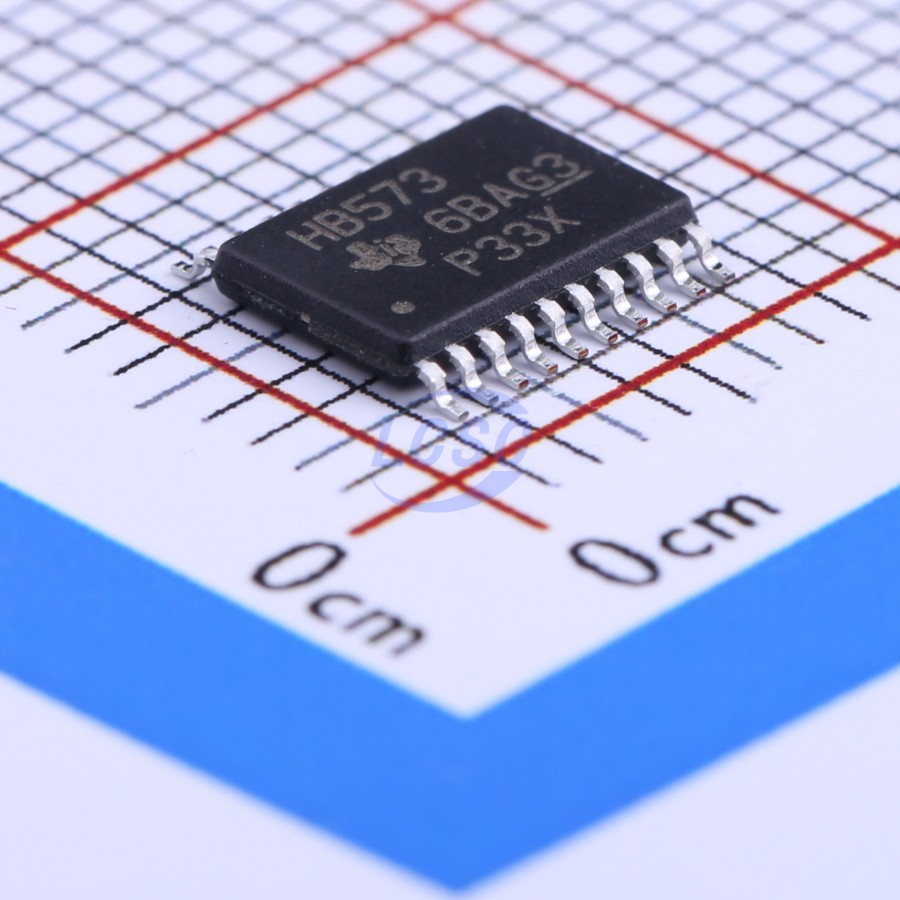

SN74AHCT573PWR
D Latch 4.5V~5.5V 8 7.5ns TSSOP-20 Latches RoHS
TSSOP-20ROHS CompliantActive
Octal Transparent D-Type Latches With 3-State Outputs
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,109 in stock
#C141311
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.69 | ₹70.69 |
| 10+ | ₹59.85 | ₹598.50 |
| 30+ | ₹52.05 | ₹1,561.50 |
| 100+ | ₹45.75 | ₹4,575.00 |
| 500+ | ₹43.80 | ₹21,900.00 |
| 1,000+ | ₹42.51 | ₹42,510.00 |
1 × ₹70.69
₹70.69
excl. GST
₹83.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT573PWR
₹70.69 for 1 + GST
Specifications
- Quiescent Current
- 40uA
- Series
- 74AHCT
- Logic Type
- D Latch
- Voltage - Supply
- 4.5V~5.5V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 8mA
- Output Type
- Tri-State
- Setup Time
- 3.5ns
- Number of Gates
- 8
- Current - Output High(IOH)
- 8mA
- Hold Time
- 1.5ns
- Propagation Delay
- 7.5ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The SNx4AHCT573 devices are octal transparent D-type latches. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs are latched at the logic levels of the D inputs.
Applications
- Servers
- PCs and Notebooks
- Network Switches
- Wearable Health and Fitness Devices
- Telecom Infrastructures
- Electronic Points of Sale
Key features
- Inputs are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74VHCT573AFT(BE)#C5331519TOSHIBA · TSSOP-20 | TOSHIBA | TSSOP-20 | 58 | ₹43.54 · 58 in stock | View |
 | 74VHCT573AFT(BJ)#C5331520TOSHIBA · TSSOP-20 | TOSHIBA | TSSOP-20 | 59 | ₹43.54 · 59 in stock | View |
 | SN74ACT533PWR#C2869027TI · TSSOP-20 | TI | TSSOP-20 | 10 | ₹224.18 · 10 in stock | View |
 | SN74AHCT373PWR#C141315TI · TSSOP-20 | TI | TSSOP-20 | 2 | ₹57.01 · 2 in stock | View |
 | SN74ACT573PWR#C352948TI · TSSOP-20 | TI | TSSOP-20 | 44 | ₹65.26 · 44 in stock | View |
