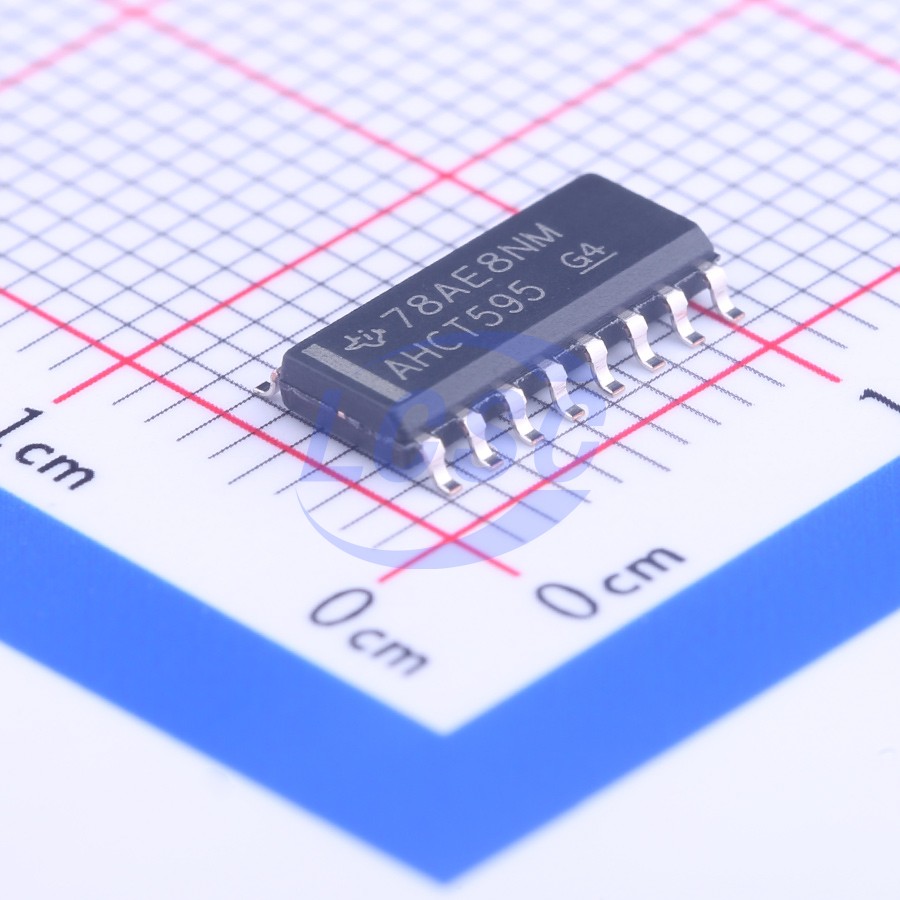

SN74AHCT595DR
4.5V~5.5V 1 8mA 10.5ns@5V,50pF Serial-to-Serial or Parallel SOIC-16 Shift Registers RoHS
SOIC-16ROHS3 CompliantActive
8-Bit Shift Registers With 3-State Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT595DR
- Store part #
- C133793
- Package / case
- SOIC-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,174 in stock
#C133793
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.31 | ₹83.31 |
| 10+ | ₹67.26 | ₹672.60 |
| 30+ | ₹60.32 | ₹1,809.60 |
| 100+ | ₹51.86 | ₹5,186.00 |
| 500+ | ₹47.95 | ₹23,975.00 |
| 1,000+ | ₹42.75 | ₹42,750.00 |
1 × ₹83.31
₹83.31
excl. GST
₹98.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHCT595DR
₹83.31 for 1 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Elements
- 1
- Output Current
- 8mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 10.5ns@5V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
The SNx4AHCT595 devices contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
Applications
- Network Switches
- Power Infrastructures
- PCs and Notebooks
- LED Displays
- Servers
Key features
- Inputs are TTL-Voltage Compatible
- 8-Bit Serial-In, Parallel-Out Shift
- Shift Register Has Direct Clear
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT595D,118#C503428Nexperia · SOP-16 | Nexperia | SOP-16 | 2 | ₹53.66 · 2 in stock | View |
 | 74AHCT595S16-13#C126402DIODES · SOP-16 | DIODES | SOP-16 | 410 | ₹28.34 · 410 in stock | View |
 | 74HCT595S16-13#C842450DIODES · SO-16 | DIODES | SO-16 | 95 | ₹59.55 · 95 in stock | View |
 | 74HCT595D,118#C282339Nexperia · SOIC-16 | Nexperia | SOIC-16 | 14,445 | ₹36.33 · 14,445 in stock | View |
 | 74HCT4094D,118#C32809Nexperia · SOIC-16 | Nexperia | SOIC-16 | 2,491 | ₹70.70 · 2,491 in stock | View |
