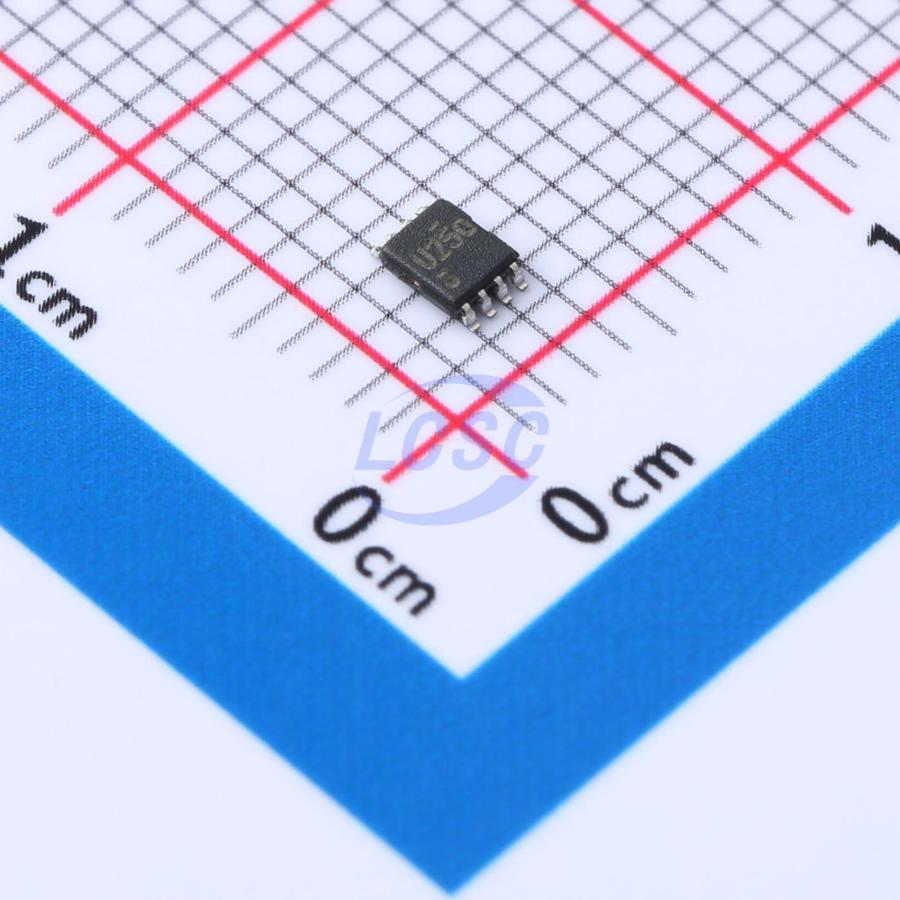

SN74AUC2G125DCUR

This dual bus buffer gate is operational at 0.8- V to 2.7- V VCC, but is designed specifically for 1.65- V to 1.95- V VCC operation. The SN74AUC2G125 features dual line drivers with 3- state outputs. The outputs are disabled when the associated output- enable (OE) input is high. NanoFreeTM package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial- power- down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

• Available in the Texas Instruments NanoFree Package
• Optimized for 1.8- V Operation and Is 3.6- V I/O Tolerant to Support Mixed- Mode Signal Operation
• Ioff Supports Partial- Power- Down Mode Operation
• Sub- 1- V Operable
• Max tpd of 1.8 ns at 1.8 V
• Low Power Consumption, 10 μA at 1.8 V
• ±8 - mA Output Drive at 1.8 V
• Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000- V Human- Body Model (A114- A)
• 200- V Machine Model (A115- A)
• 1000- V Charged- Device Model (C101)
