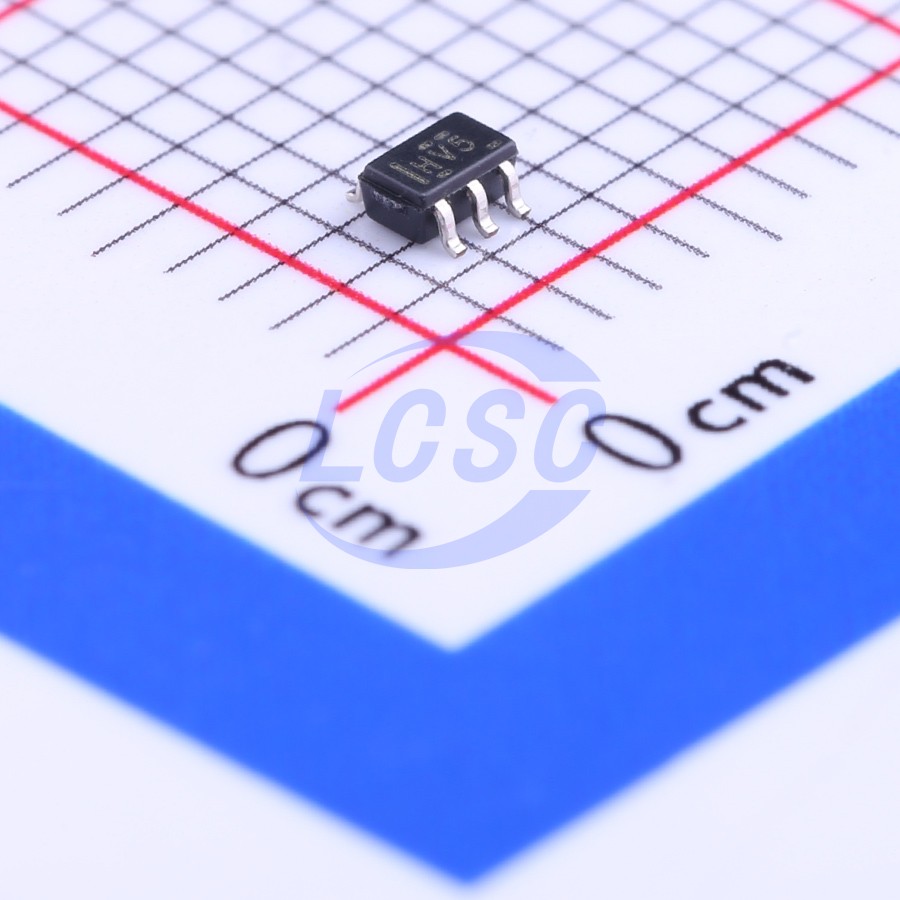

SN74AUP1G07DCKR

The SN74AUP1G07 device is a single buffer gate with open drain output that operates from 0.8 V to 3.6 V.

Applications

• ATCA Solutions
• Active Noise Cancellation (ANC)
• Barcode Scanner
• Blood Pressure Monitor
• CPAP Machine
• Cable Solutions
• DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
• E - Book
• Embedded PC
• Field Transmitter: Temperature or Pressure Sensor
• Fingerprint Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• Network - Attached Storage (NAS)
• Server Motherboard and PSU
• Software Defined Radio (SDR)
• TV: High - Definition (HDTV), LCD, and Digital - Video Communications System
• Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
• X - ray: Baggage Scanner, Medical, and Dental

Key features

• Available in the Ultra Small 0.64 mm² Package (DPW) with 0.5 mm Pitch
• Low Static - Power Consumption (Icc = 0.9 μA Maximum)
• Low Dynamic - Power Consumption (Cpd = 1 pF Typical at 3.3 V)
• Low Input Capacitance (Ci = 1.5 pF Typical)
• Low Noise - Overshoot and Undershoot < 10% of VCC
• Ioff Supports Live Insertion, Partial - Power - Down Mode, and Back - Drive Protection
• Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Type at 3.3 V)
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3 V Operation
• 3.6 V I/O Tolerant to Support Mixed - Mode Signal Operation
• tpd = 3.3 ns Maximum at 3.3 V
• Suitable for Point - to - Point Applications
• Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
• 2000 - V Human - Body Model (A114 - B, Class II)
• 1000 - V Charged - Device Model (C101)
