GREENMICRODatasheet (PDF)

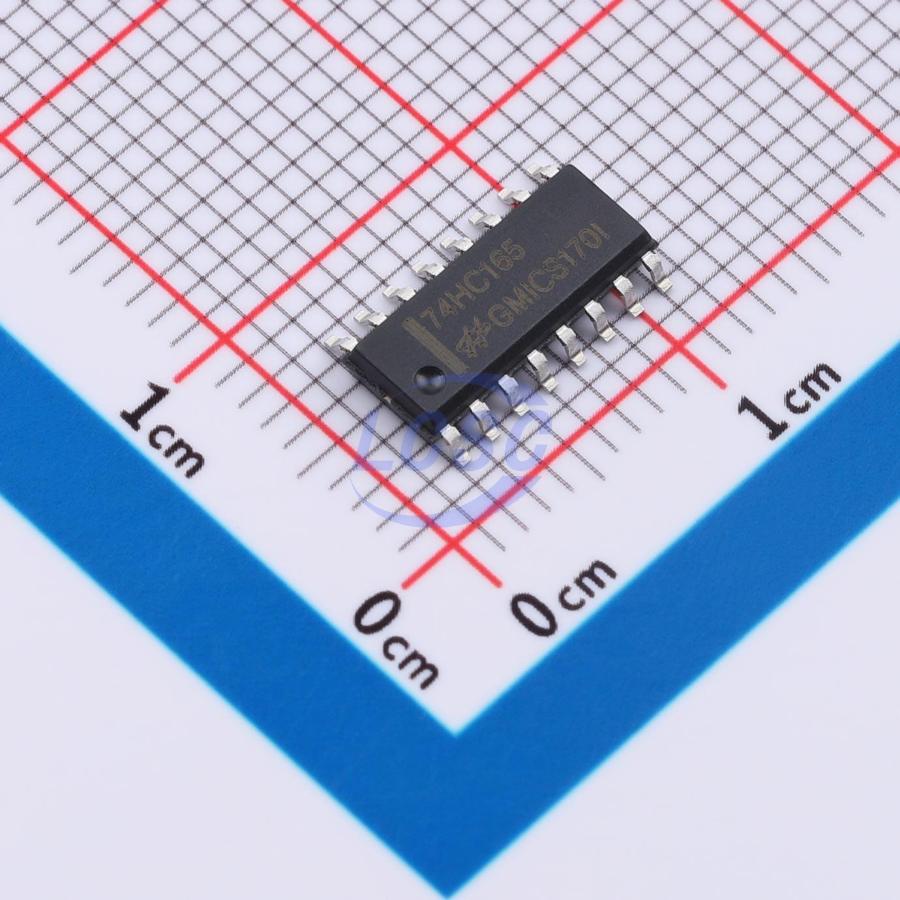

SN74HC165DES
2V~6V 1 25mA 15ns@6V,50pF Parallel or Serial to Serial SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- SN74HC165DES
- Store part #
- C51927316
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C51927316
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.09 | ₹80.45 |
| 50+ | ₹12.66 | ₹633.00 |
| 150+ | ₹10.95 | ₹1,642.50 |
| 500+ | ₹9.67 | ₹4,835.00 |
| 2,500+ | ₹8.64 | ₹21,600.00 |
| 5,000+ | ₹8.14 | ₹40,700.00 |
5 × ₹16.09
₹80.45
excl. GST
₹94.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC165DES
₹80.45 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Complementary
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Features
- Asynchronous parallel load function
- Propagation Delay
- 15ns@6V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The 74HC165 is an 8-bit serial or parallel-in/serial-out shift register. The device features a serial data input (DS), eight parallel data inputs (D0 to D7), and two complementary serial outputs (Q7 and Q7). When the parallel load input (PL) is LOW, data is asynchronously loaded into the shift register from D0 to D7. When PL is HIGH, data enters the register serially at DS. When the clock enable input (CE) is LOW, data shifts on the LOW-to-HIGH transition of the CP input. A HIGH on CE disables the CP input. The inputs feature an overvoltage tolerance of up to 15V, making the device suitable for high-to-low level translation applications.
Key features
- Input levels: CMOS levels (for 74HC165)
- Asynchronous 8-bit parallel load
- Synchronous serial input
- Operating temperature range: -40°C ~ +85°C
- Package options: DIP16, SOP16, TSSOP16
