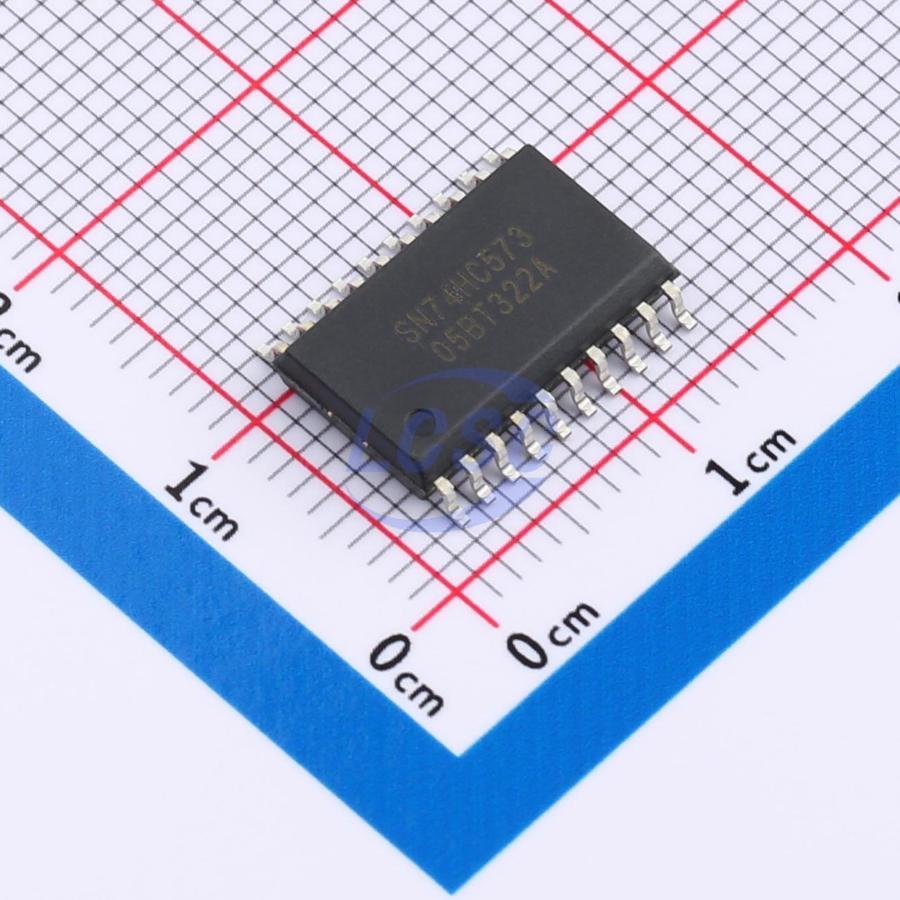

SN74HC573D(LX)
D Latch 2V~6V 8 26ns SOP-20-300mil Latches
8-bit D-type latch with three-state control
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC573D(LX)
- Store part #
- C22374070
- Package / case
- SOP-20-300mil
- Category
- Latches
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C22374070
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.83 | ₹119.15 |
| 50+ | ₹18.91 | ₹945.50 |
| 150+ | ₹16.79 | ₹2,518.50 |
| 500+ | ₹14.16 | ₹7,080.00 |
| 2,000+ | ₹12.66 | ₹25,320.00 |
| 4,000+ | ₹11.96 | ₹47,840.00 |
5 × ₹23.83
₹119.15
excl. GST
₹140.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC573D(LX)
₹119.15 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Setup Time
- 3ns
- Number of Gates
- 8
- Current - Output High(IOH)
- 7.8mA
- Hold Time
- 1ns
- Propagation Delay
- 26ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.831 g
Overview
The SN74HC/HCT573 is an 8-bit D-type latch with 3-state outputs. The device features a latch enable (LE) and an output enable (OE). When LE is high, data at the inputs enters the latches. In this condition, the latches are transparent — each latch output changes whenever its corresponding D input changes. When LE is low, the latches store the input information that was present one setup time before the falling edge of LE. A high level on OE forces the outputs into a high-impedance state. Operation of the OE input does not affect the state of the latches. The inputs are clamped with diodes to allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: SN74HC573: CMOS; SN74HCT573: TTL
- Inputs and outputs on opposite sides of the package for easy microprocessor interfacing
- 3-state non-inverting outputs for bus applications
- Common 3-state output enable input
- Operating temperature range: -40°C ~ +125°C
- Package: DIP20/SOP20/TSSOP20/SOP(M)20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS373DWR(LX)#C22374105lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 1,863 | ₹72.12 · 1,863 in stock | View |
 | SN74HC373D(LX)#C22374058lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 355 | ₹21.00 · 355 in stock | View |
